CB2 Framework User Manual

Lev Himmelfarb

June, 2004

This book is a User Guide for CB2 Framework. It introduces CB2, explains its basics and more advanced features, contains recommendations, rationales, description of a simple web-application development process. Recommended for all developers who plan or is already using CB2.


Copyright © 2004 Lev Himmelfarb

Permission is granted to make and distribute verbatim copies of this entire document without royalty provided the copyright notice and this permission notice are preserved.


Contents

Introduction

What Is CB2?

CB2 is a Java library intended to provide developers with a comprehensive software infrastructure for creating Java applications. The most usual case of CB2 usage is building a data-driven web-application and, although CB2 can be useful for developing the whole range of applications, exactly this case will be taken as the basis in this manual.

CB2 is not only a class library, it is also a framework, meaning that it gives you a complete skeleton for your application, it defines its architecture leaving places where you "plug in" modules that implement the application logic. In a sense, CB2 is an alternative to such heavy-weight technologies as EJB covering virtually all their practically useful functionality, while being much more light-weight.

Why Was CB2 Created?

CB2 fills in the gap between such a basic framework as Apache Struts and such complete and heavy-weight tools as various implementations of Sun Microsystems' J2EE, and particularly EJB containers, which usually provide developers not only with EJB, but also with the whole range of important and useful services like logging, messaging and so on. While J2EE application servers give you, as a developer, almost everything you might need leaving you, in theory, only to implement the application logic (or at least it is claimed so), they are not free of some quite important disadvantages. We will list some of them below:

CB2 itself (to be exact, its Servlet-based presentation level, which we will discuss later; the CB2's core is completely independent and can be used in applications based on different technologies, not only Servlet/JSP based web-applications) is based on Apache Struts and extends it adding all the necessary services to make a complete framework, similar to what J2EE application servers offer. The main point is that CB2 is made very practical, it does not sacrifice practical usefulness and efficiency to cover all possible and impossible cases defining far too generalized interfaces and introducing unnecessary levels, while still providing possibility of plugging very custom implementations in almost any part of its architecture when it is needed. The interfaces CB2 defines for different software components are much simplier than what J2EE offers and leaves less possibility for misunderstanding and inappropriate usage during the development process even for inexperienced developers. CB2 library is usually embedded into the web-application, which can be deployed under any Servlet container implementation making your software more mobile.

Architecture

As mentioned above, CB2 dictates your application's structure. It defines several types of software components that you implement extending provided by the library abstract classes or implementing interfaces and then plug into the defined architecture. The architecture defines two distinctive levels: the business level (or BL) and the presentation level (or PL). The framework for the BL is the CB2's core and different kinds of PLs, implemented using different technologies, can be used with the BL. However, in this manual we will consider a PL implemented as a Servlet, and our application will be in fact a web-application designed to be run under a Servlet container. This is the most common case of CB2 usage and at the same time it allows to illustrate the most of CB2's capabilities. A diagram showing the topmost architectural components of the framework is shown on Figure 1.1, where you can see three major modules dividing the whole application onto three levels of internal functionality. Let's give a brief description of those modules' purpose before going deeper into each of them.

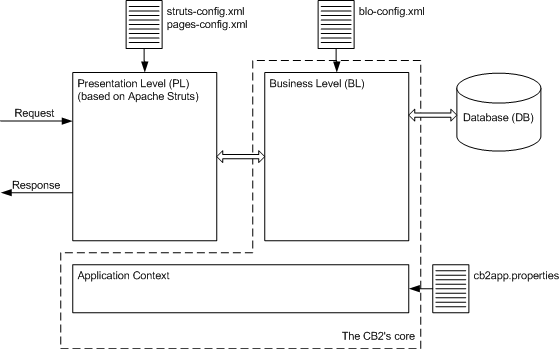

Figure 1.1: High-level CB2 framework architecture.
Image pic1

Application Context

The application context provides all subsystems of the application with the most basic low-level services. There is always only one instance of application context per application and the instance is made available to all types of application components so they can access its services at any time. The services application context provides include:

Business Level

The main application logic is implemented in components of the business level module. At the very top of it is the BL Manager singleton. As in the case of application context there is only one instance of BL Manager per application. The logic itself is implemented in components called Business Level Objects, or BLOs. Each BLO represents a specific aspect of the business logic or a business entity. Dividing the whole business logic onto seprate areas represented by BLOs also allows reusing the BLOs in other applications.

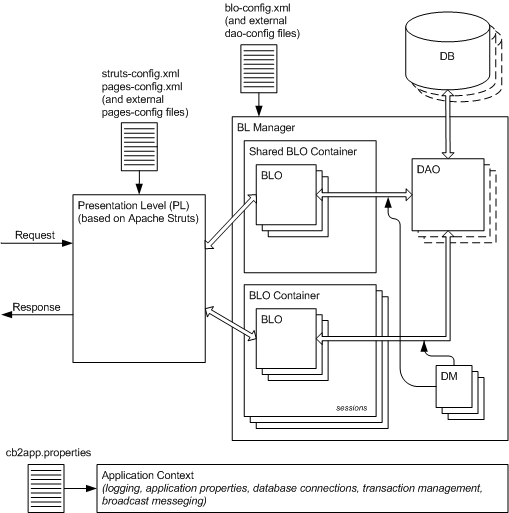

Figure 1.2: The business level.
Image pic2

Since BL Manager supports the concept of user sessions, BLOs exist in the context of a user session. The user sessions are represented by BLO Containers, which contain BLO instances. When a new user session is requested a dedicated instance of BLO Container is assigned to it and the container is populated with dedicated instances of BLOs, therefore, a BLO can have an internal state which will be in the scope of the user session. To access a BLO the code gets reference to the BLO Container instance associated with the user session from the BL Manager and then looks up the BLO in the container by the BLO's name. When BL Manager returns a BLO Container to the requester it locks it and no other requester can get the BLO Container for this session until the one which has it at the moment releases it. Because of this locking mechanism and because one request in one session is usually processed by a single thread there is no need to worry about synchronization in the BLO implementations.

There is also a special type of BLOs that are shared by all sessions thus existing not in a user session scope but in the application scope. This kind of BLOs is called shared BLOs. Shared BLOs "live" in s special shared BLO Container, which is not associated with any particular user session. One instance of shared BLO Container is created at the BL Manager initialization, which usually happens at the application startup, and is populated with instances of shared BLOs. Since the shared BLO Container is never locked by the BL Manager it allows concurrent access to shared BLOs by mutliple threads, so shared BLOs have to be developped having this fact in mind taking care of synchronizing access to their internal states.

Note, that in general it is transparent to the client code requesting access to a BLO whether the BLO is shared or not - if a BLO Container can not find a requested BLO among the ones it contains it tries to find and return a shared BLO then.

The BL Manager creates an instance of Database Access Object (DAO) for each data source available in the application context. The DAO is a utility class providing BLOs with a powerful database access API built on top of JDBC. Although BLOs can get a database connection from the application context and use standard JDBC interface to perfom operations, DAO provides a set of very powerful macro methods so in the most cases the whole construction of opening connection, preparing and executing a statement, processing the result and closing the connection can be replaced with a single DAO method call.

The DAO represents data stored in the database as Data Model objects, or DMs. A DM is an object of a very simple class containing all public member variables and representing the application data in the form as it is stored in database tables. In the simpliest case a DM corresponds to a database table and has a member variable of the appropriate type for each column in the table thus being able to hold data of a single row. It is very convenient to use DMs to pass data not only between BLOs and the DAO but also between the BLOs themselves, as well as between the BLOs and the presentation level, which converts the data from the DM form, that is the database form, to the form suitable for presenting it in the user interface.

The main configuration file for the business level is 'blo-config.xml' , which defines BLOs and configuration for the DAOs including texts of SQL queries. It can also refer to a set of external DAO configuration files which is useful in large projects.

Presentation Level

As mentioned above, different implementations of presentation level (PL) controlling the application user interface (UI) logic can be used with the CB2 core. The library includes a PL implementation for Servlet-based web-applications and exactly this presentation level framework is discussed in this manual. It is based (and includes it) on Apache Struts and extends the basic set of Struts' concepts such as actions and form beans with new ones such as pages, components and presentation elements. The central point of the web-application is still the Struts' Action Servlet and the CB2 PL framework is set up as a plug-in, which installs its own Request Processor where all the extensions start. Note also that CB2 PL completely replaces such Struts' extentions as Tiles, which is also made as a plug-in, and cannot be used with it at the same time. The CB2 PL architecture diagram is shown on Figure 1.3.

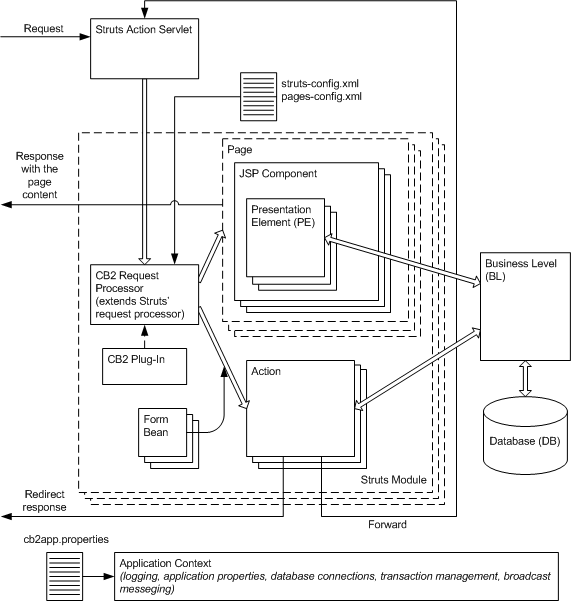

Figure 1.3: Struts-based presentation level.
Image pic3

The important difference is that CB2 introduces pages. URLs are mapped not only to actions, as in Struts, but also to pages. Basically, CB2 slightly modifies the standard Struts action -> jsp workflow and assumes that there are two kinds of requests: those that result in a page displayed in the browser, and those that are "pageless" performing some action in a response to the request and sending a redirect back to the browser and then the browser automatically makes the next request. In the first case data to be displayed can be read from the business level. In the second case, which is usually some form submition, data is modified in the business level and then a redirect to a page is sent in the response. For example, the application may have two URLs: '/customerInfo' , which is mapped to a page containing an HTML form with a customer information to be filled in, and '/saveCustomerInfo' , which is mapped to an action that receives the form data, calls the BLO to save the data to the database, and finally sends a redirect to '/customerInfo' to display the form again. Note, that in this case the action sends a redirect, not forward, so when refresh is clicked in the browser it does not submit the form and save the customer information again, but instead just redisplays the form. Of course, that is a very simple example, but it illustrates the idea. Figure 1.4 shows it graphically.

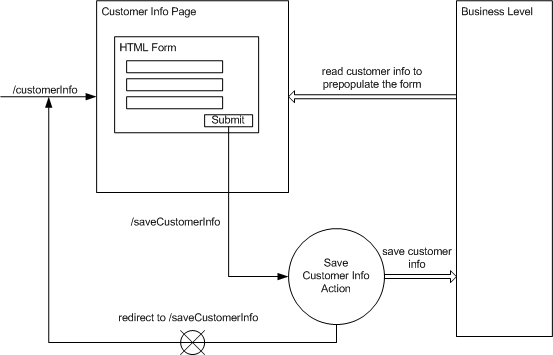

Figure 1.4: A page and a pageless action.
Image pic4

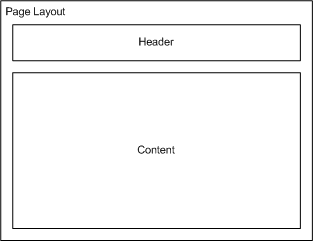

Pages are composed of components that are individual JSP files that include one another. A page starts with a template component, which may include other components using <cb2:insert> JSP tag. The included components can also include other components. Any dynamic content of the components is controlled with the help of presentation elements. On one hand, presentation elements (PEs) are Java beans put by the framework to the request or session scope and thus can be used by all Struts JSP tags in the component's JSP, including <bean: xxx > and <logic: xxx > tags. On the other hand, PEs are "smart" beans, they "know" how to populate their internal properties. When a page is called all presentation elements on all components composing the page are invoked for initialization. During this phase presentation elements can access the business level and read all the data necessary to populate their bean properties. On the next step the control is passed to the page's template component's JSP to render the page. The template component then includes other components if necessary using the <cb2:insert> tag and the JSPs read data from presentation elements' properties using, for example, Struts tags.

Note also, that the object behind a Struts <html:form> can be both a presentation element and an ActionForm bean. It plays the role of a presentation element when a page with the form is displayed and, being a presentation element, gets a chance to prepopulate the form's fields. Later in the workflow, it plays the role of an ActionForm bean when the submitted data passed to the appropriate Action in the same object's fields. Clearly, it could be two separate classes, but in the most cases it is more convenient to have a single class extending Struts' ActionForm abstract class and implementing CB2's PresentationElement interface.

Two top-level configuration files define the presentation level operation. Pages, JSP components, presentation elements and URL to page mappings are defined in 'pages-config.xml' . Pageless actions, action form beans and the rest of Struts-specific configuration (including the CB2 PL Plug-in set up) is defined in 'struts-config.xml' file.

Application Components

From the overview above follows that there is a number of different types of software components that have to be implemented during the application development. At this point we are ready to list all the component types, see Table 1.1.


Table 1.1: Software component types.
Component Extends/Implements Purpose
Data Model (DM) com.boylesoftware.cb2.
DataModel
Represents data as it is stored in the database, used for passing data between components and modules.
Business Logic Object (BLO) com.boylesoftware.cb2.
BLObject
Implements a piece of application's business logic, provides application-specific API to the presentation level.
Action com.boylesoftware.cb2.
presentation.servlet.
CB2Action
Processes HTTP requests usually making calls to the business level and submitting changes to the data. Mapped to a URL in 'struts-config.xml' configuration file.
Presentation Element (PE) com.boylesoftware.cb2.
presentation.servlet.
PresentationElement
Controls dynamic content of a UI component, represents data in the form suitable for the UI (as opposed to a DM).
Action Form org.apache.struts.
action.ActionForm
A Java bean used by Struts to pass an HTML form data to an action processing the form's submission.
User Interface Component JSP n/a A top-level (template) or an includable piece of JSP code representing a certain part of a user interface page.


Those listed in the Table 1.1 are the most widely used component types. There are also others, used more rarely, in special situations, which we will discuss later.

Developing a Web-application

In this chapter we shall develop a simple web-application starting from scratch. Going along, basics of various CB2 service subsystems, as well as recommended development approaches will be demonstrated and explained.

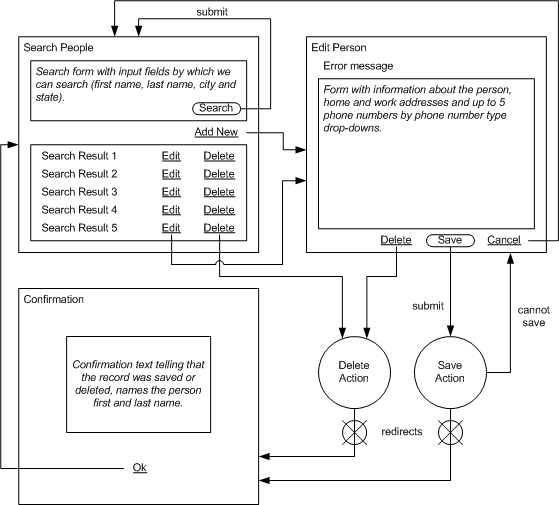

The application we are developing is a simple address book storing information about people in a relational database and allowing listing, searching, adding, deleting and updating records.

It is best to start with installing a CB2 development environment and get acquainted with its structure. The environment includes a number of default configuration files. We are going to talk a lot about them below, so it is good to have them within reach. The complete source of the example address book application with in-code comments can be downloaded from the CB2 Framework project web-site.

Our application will communicate with the database through the DAO, and it is important for us to explain the DAO operation basics first so we feel comfortable later when we discuss the business level implementation.

The DAO Basics

The DAO provides methods for the four basic database operations: fetch, update, insert and delete. It operates on DMs and a single DM, in the most simple case, holds data of one row in a table or a result set. The bodies of SQL queries are read from an XML configuration file, or a set of files. Fetch methods take the query name, query parameters, additional optional arguments for the result sorting and pagination, and return an array of DMs corresponding to the result set rows. The DM class is associated with a particular query in the configuration file. Although queries for database updates can be configured in the configuration file in the same manner, the top-level update, insert and delete methods can build SQL queries automatically basing on the DM metadata. And update takes a populated DM object, builds an UPDATE SQL query and executes it. An insert does the same, but builds an INSERT query and can automatically handle new record id generation in a database-specific manner and set the corresponding field with the id (or multiple ids) value in the DM before returning from the method call. A delete generates a DELETE SQL query and takes values of id fields from the specified DM to identify database records to delete. In all cases the association between DM fields and database table columns is based on the field names. Basically, the DM class field name should be the same as the corresponding column's name or, possibly, the column's label if it is a SELECT query and its result set. Of course, the type of the field should be compatible as well.

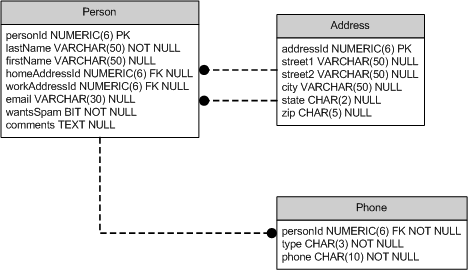

Figure 2.1: Address book database diagram.
Image pic5

Let's assume we are provided with the schema shown on Figure 2.1. Three tables allow us to have a record in Person for each contact in our address book. A record in Person can optionally have a home address record and a work address record in the Address table. Also, a record in Person can have zero or more telephone numbers associated with it and stored in the Phone table. The type column in the Phone table indicates the phone number type and takes, for example, this list of values: 'HOM' for home number, 'WRK' for work number, 'MOB' for mobile phone number, 'FAX' for fax and 'PAG' for pager. The phone column holds only phone number's digits, that is number (212) 123-4567 will be stored as 2121234567.

Data Models

When we start a new project, first step we do implementing the business level and given that the database schema is defined, we create a DM class for each database table directly mapping the table's columns to the class fields - one field for each column. A DM is a very simple class derived from com.boylesoftware.cb2.DataModel abstract parent and has no methods, only public member variables with the same names as the corresponding columns and respective types. Note, that a primitive type can be used only if the corresponding column is not nullable. Otherwise, a standard Java wrapper class must be used, so the field can be set to null if the column in the database contains SQL NULL . If a primitive type is used for a nullable field the most likely result will be that sooner or later you get a NullPointerException originating in the depths of Java refelection toolkit. Also, stylistically it is a good practice to use primitive types for not nullable fields and reference type for nullable ones, because it shows which fields in the DM are nullable and which not without consulting the database table description.

At this point we are ready to create three DM classes for our three database tables. It is recommended to call DM classes with the same names as corresponding tables and add suffix "DM".

For Person table we have got:

package com.boylesoftware.cb2.examples.addressbook;

import com.boylesoftware.cb2.DataModel;

public class AddressDM
    extends DataModel {

    public int addressId;
    public String street1;
    public String street2;
    public String city;
    public String state;
    public String zip;
}

For Address table:

package com.boylesoftware.cb2.examples.addressbook;

import com.boylesoftware.cb2.DataModel;

public class AddressDM
    extends DataModel {

    public int addressId;
    public String street1;
    public String street2;
    public String city;
    public String state;
    public String zip;
}

For Phone table:

package com.boylesoftware.cb2.examples.addressbook;

import com.boylesoftware.cb2.DataModel;

public class PhoneDM
    extends DataModel {

    public int personId;
    public String type;  // not nullable
    public String phone; // not nullable
}

Now, in the DAO configuration section of the 'blo-config.xml' file we have to create a descriptor for each DM and associate it with a database table:

<?xml version="1.0" encoding="ISO-8859-1"?>

<!DOCTYPE blo-config PUBLIC
  "-//Boyle Software, Inc.//DTD CB2 Business Level Configuration 1.0//EN"
  "http://www.cb2project.com/dtd/blo-config_1_0.dtd">

<blo-config>

  <!--
    - BLO descriptors. We shall fill in this section later.
   -->

  <!--
    - The DAO configuration.
   -->
  <dao-config>

    <dm name="person" table="Person">
      <class>com.boylesoftware.cb2.examples.addressbook.PersonDM</class>
    </dm>

    <dm name="address" table="Address">
      <class>com.boylesoftware.cb2.examples.addressbook.AddressDM</class>
    </dm>

    <dm name="phone" table="Phone">
      <class>com.boylesoftware.cb2.examples.addressbook.PhoneDM</class>
    </dm>

  </dao-config>

</blo-config>

Note, that it is not necessary to associate all DMs with tables. There may be DMs used only in complex selects with joined tables or simple selects fetching only a subset of all columns and such DMs are not directly associated with any particular table, they merely represent data in a certain result set. However, it a DM to be used with those DAO methods that automatically construct SQL queries, such as updates, inserts and deletes, the DAO needs the DM to table association. In our simple case all our DMs directly correspond to database tables and therefore they all have 'table' attribute in their XML descriptors.

Fetching Data with the DAO

Now, if we want to select all records from the Person table we have to define the query in the 'blo-config.xml' :

...
<dao-config>

  <dm name="person" table="Person">
    <class>com.boylesoftware.cb2.examples.addressbook.PersonDM</class>
  </dm>

  ...

  <query name="listAllPeople" usedm="person">
    <sql>
    SELECT personId,
           lastName,
           firstName,
           homeAddressId,
           workAddressId,
           email,
           wantsSpam,
           comments
    FROM   Person
    </sql>
  </query>

</dao-config>
...

This associates the SQL query with then name 'listAllPeople' and tells that the corresponding to the querie's result set DM is 'person' . To execute the query we make call the DAO's fetch method from Java:

DAO dao = getDAO(); // get reference to the DAO
PersonDM [] people = (PersonDM [])dao.fetch("listAllPeople", null);

This call will return an array of DMs, one for each row in the table, with the fields populated with the data from the database. The DMs in the array will be in the order the query returned them. The second argument of the fetch method is used for passing parameters to the query, but since our query needs no parameters we pass null .

Some optional parameters can be passed to the fetch method. For example, if we want the result set to be ordered by person last name we can make the following call:

PersonDM [] people =
    (PersonDM [])dao.fetch("listAllPeople",
                           null,
                           new String [] { "lastName" },
                           DAO.ORDER_ASC);

The DAO then will automatically modify the text of the query and will append an ORDER BY clause to it. Ordering by multiple columns can be requested as well:

PersonDM [] people =
    (PersonDM [])dao.fetch("listAllPeople",
                           null,
                           new String [] { "lastName", "firstName" },
                           DAO.ORDER_ASC);

A clause 'ORDER BY lastName ASC, firstName ASC' will be appended to the query before calling the database.

Another supplementary feature is the result set pagination. A certain segment, or page, of the whole result set can be requested. For example, we need to display the second page of a long list of people on the screen while one page consists of 20 records. The following call then can be made:

PersonDM [] people =
    (PersonDM [])dao.fetch("listAllPeople",
                           null,
                           1,  // page number starting from zero
                           20, // page size
                           null);

The resulting array then will contain at most 20 records starting from the 20th in the result set. The null passed as the fifth argument can be replaced with an instance of com.boylesoftware.cb2.FetchResultDescriptor , which will be filled by the method with additional information about the whole result set. For example, if we also need to know how many records are in the whole result set, not only the requested page, we can make this call:

FetchResultDescriptor frd = new FetchResultDescriptor();
PersonDM [] people =
    (PersonDM [])dao.fetch("listAllPeople",
                           null,
                           1,  // page number starting from zero
                           20, // page size
                           frd);
int numberOfPages = (frd.getRowsTotal() - 1)/20 + 1;

Queries can also be parametrized. For example, we need our query not just list all people in the table, but do a search by last name. Then the query transforms to:

...
<query name="searchPeopleByLastName" usedm="person">
  <sql>
  SELECT personId,
         lastName,
         firstName,
         homeAddressId,
         workAddressId,
         email,
         wantsSpam,
         comments
  FROM   Person
  WHERE  lastName LIKE ?
  </sql>
</query>
...

And we can call it, for example, like this:

PersonDM [] people =
    (PersonDM [])dao.fetch("searchPeopleByLastName",
                           new Object [] {
                               "%" + searchFor + "%"
                           });

If we would like to search a substring in both last and first name, then the query will be:

...
<query name="searchPeopleByLastName" usedm="person">
  <sql>
  SELECT personId,
         lastName,
         firstName,
         homeAddressId,
         workAddressId,
         email,
         wantsSpam,
         comments
  FROM   Person
  WHERE  lastName LIKE ?
         OR firstName LIKE ?
  </sql>
</query>
...

And the call:

PersonDM [] people =
    (PersonDM [])dao.fetch("searchPeopleByLastName",
                           new Object [] {
                               "%" + searchFor + "%",
                               "%" + searchFor + "%"
                           });

We can add any number of parameters. For example, we would like to search by person's name and his state:

...
<query name="searchPeopleByLastName" usedm="person">
  <sql>
  SELECT personId,
         lastName,
         firstName,
         homeAddressId,
         workAddressId,
         email,
         wantsSpam,
         comments
  FROM   Person
         LEFT OUTER JOIN Address AS HomeAddress
             ON HomeAddress.addressId = Person.homeAddressId
         LEFT OUTER JOIN Address AS WorkAddress
             ON WorkAddress.addressId = Person.workAddressId
  WHERE  (
           lastName LIKE ?
           OR firstName LIKE ?
         )
         AND (
           HomeAddress.state = ?
           OR WorkAddress.state = ?
         )
  </sql>
</query>
...

And the call:

PersonDM [] people =
    (PersonDM [])dao.fetch("searchPeopleByLastName",
                           new Object [] {
                               "%" + nameSubstring + "%",
                               "%" + nameSubstring + "%",
                               state,
                               state
                           });

A query parameter in the input array can be an array itself, in which case if a double-question mark is placed in the corresponding position in the query text it will be expanded to a sequence of comma separated single question marks according to the number of elements in the sub-array. It is particularly useful with SQL IN conditions. For example:

...
<query name="searchPeopleByLastName" usedm="person">
  <sql>
  SELECT personId,
         lastName,
         firstName,
         homeAddressId,
         workAddressId,
         email,
         wantsSpam,
         comments
  FROM   Person
         LEFT OUTER JOIN Address AS HomeAddress
             ON HomeAddress.addressId = Person.homeAddressId
         LEFT OUTER JOIN Address AS WorkAddress
             ON WorkAddress.addressId = Person.workAddressId
  WHERE  (
           lastName LIKE ?
           OR firstName LIKE ?
         )
         AND (
           HomeAddress.state IN (??)
           OR WorkAddress.state IN (??)
         )
  </sql>
</query>
...

Then, if we are looking for people only in New York's tri-state area, we could make the following call:

PersonDM [] people =
    (PersonDM [])dao.fetch("searchPeopleByLastName",
                           new Object [] {
                               "%" + nameSubstring + "%",
                               "%" + nameSubstring + "%",
                               new Object [] { "NY", "NJ", "CT" },
                               new Object [] { "NY", "NJ", "CT" },
                           });

Both IN conditions then will be expanded from 'IN (??)' to 'IN (?, ?, ?)' before the parameters are set.

As we can see, the parameters are passed to queries basing on their position in the input array and the position of the corresponding question mark in the querie's text. This is a very simple and efficient approach, however it has some disadvantages. First, Java code depends on the SQL query structure and if the position of a parameter changes after modification of a query the Java code making calls to it has to be reviewed as well. Second, as in the example above, if the same parameter is used multiple times in a query it has to be passed to the fetch method as multiple elements of the input array.

There is an alternative way to pass parameters to a query - one, which uses named parameters. We can modify the search query above and use special named parameter placeholders instead of simple question marks:

...
<query name="searchPeopleByLastName" usedm="person">
  <sql>
  SELECT personId,
         lastName,
         firstName,
         homeAddressId,
         workAddressId,
         email,
         wantsSpam,
         comments
  FROM   Person
         LEFT OUTER JOIN Address AS HomeAddress
             ON HomeAddress.addressId = Person.homeAddressId
         LEFT OUTER JOIN Address AS WorkAddress
             ON WorkAddress.addressId = Person.workAddressId
  WHERE  (
           lastName LIKE {? name}
           OR firstName LIKE {? name}
         )
         AND (
           HomeAddress.state IN ({?? states})
           OR WorkAddress.state IN ({?? states})
         )
  </sql>
</query>
...

The fetch call then uses a map to pass parameters instead of an array:

Map params = new HashMap(2);
params.put("name", "%" + nameSubstring + "%");
params.put("states", new Object [] { "NY", "NJ", "CT" });
PersonDM [] people =
    (PersonDM [])dao.fetchWithNamedParams("searchPeopleByLastName",
                                          params);

Updating Data with the DAO

As mentioned above, the DAO can construct an UPDATE SQL statement automatically given a DM by simply including all the DM fields into the statement, so there is no need to define the query in the DAO configuration. However, to be able to generate an appropriate WHERE clause to select the record we want to update, the DAO needs to distinguish between record identifying and regular data fields in the DM. Then, all id fields will be included into the UPADTE 's WHERE clause and all other fields will be included into the SET clause. The DM's descriptor in the DAO configuration XML file identities which fields are id fields. In our case the three DM descriptors in the 'blo-config.xml' file become this:

...
<dao-config>

  <dm name="person" table="Person">
    <class>com.boylesoftware.cb2.examples.addressbook.PersonDM</class>
    <idfield name="personId"/>
  </dm>

  <dm name="address" table="Address">
    <class>com.boylesoftware.cb2.examples.addressbook.AddressDM</class>
    <idfield name="addressId"/>
  </dm>

  <dm name="phone" table="Phone">
    <class>com.boylesoftware.cb2.examples.addressbook.PhoneDM</class>
  </dm>

  ...

</dao-config>
...

Note that we have added <idfield> elements to the person and address DMs descriptors.

Now, for example, we want to capitalize last and first name in a person record with id '12' . The following Java code does that:

// get reference to the DAO
DAO dao = getDAO();

// fetch the record
// (we assume it always exists and there is a query fetchPersonById
// defined in the blo-config.xml which takes one parameter and
// selects a single person DM by personId)
PersonDM person =
    ((PersonDM [])dao.fetch("fetchPersonById",
                            new Object [] { new Integer(12) }))[0];

// at this point all fields in person are filled with data from
// the database, the personId field is 12

// update the DM
person.lastName = person.lastName.substring(0, 1).toUpperCase() +
    person.lastName.substring(1).toLowerCase();
if(person.firstName != null) { // the firstName is nullable!
    person.firstName = person.firstName.substring(0, 1).toUpperCase() +
        person.firstName.substring(1).toLowerCase();
}

// commit the change
dao.update(person);

The last call will generate and execute an SQL statement similar to this:

UPDATE Person
SET    lastName = 'Tilsen',
       firstName = 'Moses',
       homeAddressId = 100,
       workAddressId = NULL,
       email = 'moses@tilsen.org',
       wantsSpam = 0,
       comments = NULL
WHERE  personId = 12

The table name and information about which fields are id fields and which are not is taken from the DM descriptor in the DAO configuration file.

Also, it is possible to have multiple id fields in a DM, which is useful when the DM corresponds to a table with a compound primary key. In such a case all id fields will be included into the WHERE clause and combined using AND .

Inserting Data with the DAO

Inserting data is very similar to updating described above with one important difference - id fields values should be generated for the new record. For each id field the DAO should be provided with a special SELECT query that returns the id field's new value. Different databases implement the mechanism of new id generation differently, but in the most cases the implementation falls into one of the following two categories:

  1. The id column in the table has a special type and when an insert happens the database automatically generates next value and sets it into to the record's field. After the insert has been performed the generated id value can be read from a special variable. Examples of RDBMSs implementing this approach can be Sybase ASE and Microsoft SQL Server.
  2. Next value for the id column is read from a special source by a separate SELECT query and then this value is used in the INSERT statement along with the values for all other fields. An example is Oracle, which has special database objects called sequences serving, particularly, the purpose of generating values for id fields.

The query, which returns the new id values, can be associated with a DM's id field with 'srcquery' attribute of the <idfield> element in the DM's descriptor. This attribute names the query defined using a <query> element somewhere in the DAO configuration. The way the query should be called is defined by the <idfield> 's 'srcorder' attribute, which can take one of the two values: 'pre' or 'post' . If it is 'pre' , which is the default, the srcquery will be called before the main insert is performed (the second category in the list above). If it is 'post' the query will be called after (the first category).

For example, if we had a Microsoft SQL Server database and the personId column in the Person table, as well as addressId in Address , were IDENTITY columns, our DAO configuration could look like this:

...
<dao-config>

  <dm name="person" table="Person">
    <class>com.boylesoftware.cb2.examples.addressbook.PersonDM</class>
    <idfield name="personId" srcquery="getIdentity" srcorder="post"/>
  </dm>

  <dm name="address" table="Address">
    <class>com.boylesoftware.cb2.examples.addressbook.AddressDM</class>
    <idfield name="addressId" srcquery="getIdentity" srcorder="post"/>
  </dm>

  <dm name="phone" table="Phone">
    <class>com.boylesoftware.cb2.examples.addressbook.PhoneDM</class>
  </dm>

  ...

  <query name="getIdentity">
    <sql>
    SELECT @@IDENTITY
    </sql>
  </query>

</dao-config>
...

Immediately after every insert into Person or Address the 'SELECT @@IDENTITY' will be called and the returned value will be assumed to be the id of the just inserted record. The id column itself meanwhile will not appear in the generated INSERT statement - the database will insert the appropriate value automatically.

If it was, for example, Oracle and there was a sequence named 'EntityIds' , the configuration would be:

...
<dao-config>

  <dm name="person" table="Person">
    <class>com.boylesoftware.cb2.examples.addressbook.PersonDM</class>
    <idfield name="personId" srcquery="getNextId" srcorder="pre"/>
  </dm>

  <dm name="address" table="Address">
    <class>com.boylesoftware.cb2.examples.addressbook.AddressDM</class>
    <idfield name="addressId" srcquery="getNextId" srcorder="pre"/>
  </dm>

  <dm name="phone" table="Phone">
    <class>com.boylesoftware.cb2.examples.addressbook.PhoneDM</class>
  </dm>

  ...

  <query name="getNextId">
    <sql>
    SELECT EntityIds.NEXTVAL
    </sql>
  </query>

</dao-config>
...

This way 'SELECT EntityIds.NEXTVAL' will be called first and then the returned value will be used in the generated INSERT statement along with all other fields from the DM.

In both cases, the Java code would look like this:

// get the DAO
DAO dao = getDAO();

// build a DM
PersonDM person = new PersonDM();
person.lastName = "Tilsen";
person.firstName = "Moses";
person.homeAddressId = new Integer(100);
person.workAddressId = null;
person.email = "moses@tilsen.org";
person.wantsSpam = false;
person.comments = null;

// insert the record
dao.insert(person);

// log the new record's id
log.debug("Inserted new person record, id = " + person.personId);

The insert method, beside generating and executing an INSERT statement, also updates the passed DM instance and sets the id fields, so we leave the personId untouched in the sample above where we build and populate a DM and then we can find the new record's id set in the field after the insert call.

Deleting Data with the DAO

Deleting a record is simple: we create an instance of the DM, set the id fields and call the delete method on the DAO:

// get the DAO
DAO dao = getDAO();

// create a DM instance
PersonDM person = new PersonDM();

// set the id of the record we want to delete
person.personId = 12;

// do delete
dao.delete(person);

The generated query then will be 'DELETE FROM Person WHERE personId = 12' . All other than id fields in the DM are ignored. If a DM has multiple id fields they are combined using AND in the WHERE clause, just the same way the update does.

Calling Custom Update Statements

In a more advanced case we may not be satisfied with simple SQL statements the DAO is able to generate and the DAO allows us to define and execute any SQL text. For example, in the DAO configuration:

...
<dao-config>

  ...

  <query name="turnoverActivityHistory">
    <sql><![CDATA[
    DECLARE @startDate DATETIME

    SELECT @startDate = ?

    INSERT INTO ActivityHistory
    SELECT *
    FROM   Activity
    WHERE  closingDate >= @startDate

    IF @@ROWCOUNT > 0 BEGIN
        UPDATE Activity
        SET    lastTurnoverDate = GETDATE()
        WHERE  closingDate >= @startDate
    END
    ]]></sql>
  </query>

  ...

</dao-config>
...

Can be executed like this:

DAO dao = getDAO();

dao.update("turnoverActivityHistory",
           new Object [] { new java.sql.Date() });

SQL text of statements can also be passed to the DAO directly from Java without defining them in the DAO configuration file. There are lots of other features in the DAO as well, see Javadoc-generated API reference and the DTD files for complete details.

Fetching Data into a DM Hierarchy

As we established the DAO's fetch methods return arrays of DMs. But what if in the earlier example of selecting people records we wanted to fetch information about people along with their addresses using one single SELECT ? It is possible using nested DMs.

The first step is we add a nested address DMs to the person DM:

public class PersonDM
    extends DataModel {

    // table columns

    public int personId;
    public String lastName; // not nullable
    public String firstName;
    public Integer homeAddressId;
    public Integer workAddressId;
    public String email;
    public boolean wantsSpam;
    public String comments;

    // nested DMs

    public AddressDM homeAddress;
    public AddressDM workAddress;
}

Now, in our SELECT statement we can join Person table with Address table and include data from the Address table into the result set. The result set though has to be structured in a special fashion to allow the DAO to parse it and put values from the columns to the appopriate fields in the top-level and nested DMs. In the case of one to zero-or-one relationship, which is the case in the example we are discussing, the following rule should be applied to the result set structure: columns belonging to one nested DM are groupped together in a sequence in the result set and the whole group is preceded by a column having the number of following nested DM columns as its value and as its label - the nested DM field's name in the parent DM. The query fetching person details by a person id will look like the following:

<query name="fetchPersonById" usedm="person">
  <sql>
  SELECT -- person details fields from Person table
         personId,
         lastName,
         firstName,
         homeAddressId,
         workAddressId,
         email,
         wantsSpam,
         comments,
         -- home address nested DM
         5 AS homeAddress, -- means: the following 5 fields
                           -- belong to the nested DM
                           -- in field named homeAddress
         HomeAddress.street1,
         HomeAddress.street2,
         HomeAddress.city,
         HomeAddress.state,
         HomeAddress.zip,
         -- work address nested DM
         5 AS workAddress,
         WorkAddress.street1,
         WorkAddress.street2,
         WorkAddress.city,
         WorkAddress.state,
         WorkAddress.zip
  FROM   Person
         LEFT OUTER JOIN Address AS HomeAddress
             ON HomeAddress.addressId = Person.homeAddressId
         LEFT OUTER JOIN Address AS WorkAddress
             ON WorkAddress.addressId = Person.workAddressId
  WHERE  personId = ?
  </sql>
</query>

Note a very important feature of the query above - it does not select addressId from HomeAddress and WorkAddress . The reason is that the tables (in fact it is the same table but joined twice) are joined using an outer join and therefore may return nulls in the columns. At the same time the addressId field in AddressDM has primitive type int , so if it was included in the result column list and there was no home or work address for a record ( homeAddressId or workAddressId is NULL ) we would get an exception when the DAO tried to set the field in the nested DM. Fortunately (usually), we've got the ids in the top level DM in the homeAddressId and workAddressId fields and they are nullable. Another conclusion is that a nested DM field is never set to null even if it is joined using an outer join and there is no respective record in the joined table. Instead, all the fields included in the result set will be set to null and some other mechanism should be employed to determine if a record is present or not (in our case address id fields in the parent PersonDM can be checked for null ). What implies from the query above also is that if a column is not included in the result column list respective DM field will stay untouched and it is not any kind of error, except maybe stylistical, to have unused fields in DMs. This way a single DM class can be potentially used with different queries fetching this or that set or subset of the DM's fields, although we recommend to have a hierarchy of DM classes that extend one another each adding more fields and use different DM classes for different result sets.

One nested DM can include another nested DM. For example, suppose we have another table called State that has two columns: state with a two-letter state code, and fullName which holds the state's full name. Now, we want to select a person record with home address and the full name of the state in the home address. First, we define a DM class for the State table:

package com.boylesoftware.cb2.examples.addressbook;

import com.boylesoftware.cb2.DataModel;

public class StateDM
    extends DataModel {

    public String state;    // not nullable
    public String fullName; // not nullable
}

Next, we add a nested DM to the AddressDM :

public class AddressDM
    extends DataModel {

    public int addressId;
    public String street1;
    public String street2;
    public String city;
    public String state;
    public String zip;

    public StateDM stateInfo;
}

And now we are ready to write a SELECT for two nested DMs:

SELECT -- person details fields from Person table
       personId,
       lastName,
       firstName,
       homeAddressId,
       workAddressId,
       email,
       wantsSpam,
       comments,
       -- home address nested DM
       8 AS homeAddress, -- we include 5 fields for the
                         -- address and 3 fields for the
                         -- state info (2 data fields and
                         -- the header column)
       Address.street1,
       Address.street2,
       Address.city,
       Address.state,
       Address.zip,
       -- state info nested DM
       2 AS stateInfo,
       State.state,
       State.fullName
FROM   Person
       LEFT OUTER JOIN Address
           ON Address.addressId = Person.homeAddressId
       LEFT OUTER JOIN State
           ON State.state = Address.state

This was the technique for one to zero-or-one relationship (or one to one, which is the same but no nulls). With phone numbers we have got a different situation, it is one to zero-or-more relationship. In this case we need an array of nested DMs instead of a single nested DM:

public class PersonDM
    extends DataModel {

    // table columns

    public int personId;
    public String lastName; // not nullable
    public String firstName;
    public Integer homeAddressId;
    public Integer workAddressId;
    public String email;
    public boolean wantsSpam;
    public String comments;

    // nested DMs

    public AddressDM homeAddress;
    public AddressDM workAddress;

    public PhoneDM [] phones;
}

For nested DM arrays the result set should be structured differently. First of all, only one nested array can be fetched on one nesting level at once and the columns belonging to the nested array should all be groupped at the very end of the result column list. The header column, instead of the number of nested DM fields contains a value, which identifies the parent record and the result set should be ordered so rows containing data for the same array immediately follow each other - as long as the value of the header column stays the same for subsequent rows the data from the rows is added to the same array of DMs; as soon as the header column changes a new parent DM is created and a new nested array of DMs is started. For example:

SELECT -- person details fields from Person table
       Person.personId,
       lastName,
       firstName,
       homeAddressId,
       workAddressId,
       email,
       wantsSpam,
       comments,
       -- nested array of DMs
       Person.personId AS phones, -- personId identifies the
                                  -- parent DM and the nested DMs
                                  -- array field is called phones.
       Phone.personId,            -- second time for the DM field
       Phone.type,
       Phone.phone
FROM   Person
       LEFT OUTER JOIN Phone
           ON Phone.personId = Person.personId
ORDER  BY Person.personId -- phones for one person immediately
                          -- follow each other

Note the ORDER BY clause, which makes phones for the same person follow each other in the result set making possible for the DAO to group them all together and put into one nested array.

We can safely include Phone.personId to the result column list even though there is an outer join - an empty array will be assigned to the phones field of the PersonDM for people who does not have any phone numbers, so the DAO will never try to set a null to the id field of primitive type. This situation, possible with outer joins, is identified by checking the first column in the nested DM column list in the first row of data for a new parent DM for NULL - if it is NULL it is assumed that there are no records in the nested array and processing of the next parent DM starts from the next row. It implies that the first column of the nested DM column list should be better not nullable. In our case it is Phone.personId , which suites perfectly for the purpose. Note also, that nested arrays are never set by the DAO to null , but empty arrays are possible.

Let's have a look at the following result set:

 personId | lastName | ... | phones | personId | type | phone
----------+----------+-----+--------+----------+------+------------
 100      | Tilsen   | ... | 100    | 100      | HOM  | 1112223333
 100      | Tilsen   | ... | 100    | 100      | WRK  | 1113334444
 100      | Tilsen   | ... | 100    | 100      | MOB  | 2224445566
 101      | Pilat    | ... | 101    | NULL     | NULL | NULL
 102      | Praetor  | ... | 102    | 102      | WRK  | 1113332277
----------+----------+-----+--------+----------+------+------------
Total: 5 rows

The DAO's fetch method will return an array of 3 person DMs. The first one will have 3 phone DMs in its phones nested array, the second will have an empty array, and the thrid will have a one-element array.

Although it is impossible to have two nested arrays on one level selected at once, DMs in a nested array can have nested arrays too. The result set then is structured so the deeper a nested array is, the closer to the end of the result column list its columns are. It is also necessary to order the result set by mutliple columns in such a case. A DM, of course, can still have multiple nested array fields, but the DAO is able to fetch data only for one of them using a single SELECT statement.

Single nested DMs and nested arrays of DMs can be mixed in one result set. For example, a query selecting all the information about people from our database would look like the following:

SELECT -- person details fields from Person table
       personId,
       lastName,
       firstName,
       homeAddressId,
       workAddressId,
       email,
       wantsSpam,
       comments,
       -- home address nested DM
       5 AS homeAddress,
       HomeAddress.street1,
       HomeAddress.street2,
       HomeAddress.city,
       HomeAddress.state,
       HomeAddress.zip,
       -- work address nested DM
       5 AS workAddress,
       WorkAddress.street1,
       WorkAddress.street2,
       WorkAddress.city,
       WorkAddress.state,
       WorkAddress.zip,
       -- nested array of phone DMs
       Person.personId AS phones,
       Phone.type,
       Phone.phone
FROM   Person
       LEFT OUTER JOIN Address AS HomeAddress
           ON HomeAddress.addressId = Person.homeAddressId
       LEFT OUTER JOIN Address AS WorkAddress
           ON WorkAddress.addressId = Person.workAddressId
       LEFT OUTER JOIN Phone
           ON Phone.personId = Person.personId
ORDER  BY Person.personId

Very important notice is that when we use nested arrays of DMs we cannot use the DAO's result set pagination feature. Various number of result set rows correspond to DMs in the top-level array built by the fetch method and it makes impossible for the DAO to scroll to the row corresponding to the first record of the requested page, because the row number can be anything depending on the data of DMs in the previous pages.

The DMs with nested DMs and arrays of DMs can still be used with the DAO's updates, inserts and deletes. The thing is that those methods ignore array fields and fields of type extending DataModel when they construct SQL statements.

Using Column Set Macros

It happens very often when we need to list all DM fields in a SELECT query in the DAO configuration file. There is an extended syntax, which can do it automatically helping to create simple and complex select field lists:

{dm
    [from <table name>]
    [prefix <column alias prefix>]
    [excluding|only (<field name> [, <field name> ...])]
    [{<nested DM field name>
        [from <table name>]
        [prefix <column alias prefix>]
        [excluding|only (<field name> [, <field name> ...])]
        [by <parent DM id field name>]
        [{<nested DM field name> ...}
         ...
        ]
     }
     ...
    ]
}

This macro expands automatically to a list of select fields, which can be tuned using various optional clauses:

For example, the last query in the previous section could be rewritten:

<query name="fetchPersonById" usedm="person">
  <sql>
  SELECT {dm
           {homeAddress}
           {workAddress}
           {phones}
         }
  FROM   Person
         LEFT OUTER JOIN Address AS HomeAddress
             ON HomeAddress.addressId = Person.homeAddressId
         LEFT OUTER JOIN Address AS WorkAddress
             ON WorkAddress.addressId = Person.workAddressId
         LEFT OUTER JOIN Phone
             ON Phone.personId = Person.personId
  ORDER  BY Person.personId
  </sql>
</query>

Looks simple, isn't it? But in reality, and in our particular case, it would not be correct if we did so. The problems are: homeAddress and workAddress nested DMs will include addressId field and, as we established earlier, we cannot do it. Secondly, since table named 'Address' is associated with the DM corresponding to the homeAddress and workAddress nested DM fields, exactly that table will be used to select the fields, while there is no Address table in our FROM clause - it is aliased to 'HomeAddress' and 'WorkAddress' .

For the first problem there are four alternative solutions:

  1. We can write select lists ourselves and simply skip the addressId fields (as we did earlier). In this case the extended syntax does not help us and we are still listing DM fields in two places - the DM class and the select list, which is not very nice.
  2. We can change the type of addressId in the AddressDM from int to Integer , which is stylistically not nice at all, because it implies that the addressId field is nullable while it is not.
  3. We can define two DM classes: one without the addressId field and another extending it and adding the addressId field (to be used with updates, inserts and deletes).
  4. Use excluding clause.

The second problem, with the table name aliases, can be simply solved by using from clause.

This way, our query becomes this:

<query name="fetchPersonById" usedm="person">
  <sql>
  SELECT {dm
           {homeAddress FROM HomeAddress EXCLUDING(addressId)}
           {workAddress FROM WorkAddress EXCLUDING(addressId)}
           {phones}
         }
  FROM   Person
         LEFT OUTER JOIN Address AS HomeAddress
             ON HomeAddress.addressId = Person.homeAddressId
         LEFT OUTER JOIN Address AS WorkAddress
             ON WorkAddress.addressId = Person.workAddressId
         LEFT OUTER JOIN Phone
             ON Phone.personId = Person.personId
  ORDER  BY Person.personId
  </sql>
</query>

Now this will work just fine.

Dynamic SQL with Conditions

The last still undiscussed DAO feature we will need in our sample application allows to use dynamically constructed SQL queries while having the query parts still in the DAO configuration file. Different parts of a complex SQL query can be specially tagged and then conditionally included or excluded from the final SQL query text. The set of conditions is specified from the Java code at the time of making a DAO call.

Suppose we would like to be able to search people in the database by last name, first name, city and state, or any combination of these properties. Having a separate SQL query with a different WHERE clause for each combination is impractical. One solution is to have a complex WHERE clause that checks if this or that condition should be included into the final filter by analyzing a special parameter, say a set of bits one for each condition present:

SELECT {dm}
FROM   Person
       LEFT OUTER JOIN Address AS HomeAddress
           ON HomeAddress.addressId = Person.homeAddressId
       LEFT OUTER JOIN Address AS WorkAddress
           ON WorkAddress.addressId = Person.workAddressId
WHERE  ({? searchBy} & 1 = 0 OR lastName LIKE {? lastName})
       AND ({? searchBy} & 2 = 0 OR firstName LIKE {? firstName})
       AND ({? searchBy} & 4 = 0 OR
         HomeAddress.city LIKE {? city} OR WorkAddress.city LIKE {? city})
       AND ({? searchBy} & 8 = 0 OR
         HomeAddress.state = {? state} OR WorkAddress.state = {? state})

Then, passing searchBy parameter with different bits set we can turn on or off this or that condition. The problem with this approach is that first, it makes the query overly complicated, and second, not every database engine is able to optimize the query execution properly and a query with such a complex WHERE clause will be slow.

Another approach is to simply build the query text in Java programmatically and then execute it with the DAO's executeFetch or executeUpdate methods. The obvious disadvantage is spreading the SQL code over different places in the application source.

The DAO's extended syntax provides a better solution. We can tag different parts of the WHERE clause, called conditions, with different names in the SQL query definition and then specify a set of condition names we would like to include to the final query text right where we call the DAO. A condition has the following synthax:

{cond (<condition name>) <chunk of SQL text>}

In our case the search query will look like this:

SELECT {dm}
FROM   Person
       LEFT OUTER JOIN Address AS HomeAddress
           ON HomeAddress.addressId = Person.homeAddressId
       LEFT OUTER JOIN Address AS WorkAddress
           ON WorkAddress.addressId = Person.workAddressId
WHERE  1 = 1 -- to make SQL synthax valid when no conditions are included
       {cond (lastName)
         AND lastName LIKE {? lastName}}
       {cond (firstName)
         AND firstName LIKE {? firstName}}
       {cond (city)
         AND (HomeAddress.city LIKE {? city}
              OR WorkAddress.city LIKE {? city})}
       {cond (state)
         AND (HomeAddress.state = {? state}
              OR WorkAddress.state = {? state})}

The the Java code calling this query could be:

// get the DAO
DAO dao = getDAO();

// build the conditions set and the parameters map
Set conds = new HashSet();
Map params = new HashMap();
if(lastName != null) {
    conds.add("lastName");
    params.put("lastName", lastName);
}
if(firstName != null) {
    conds.add("firstName");
    params.put("firstName", firstName);
}
if(city != null) {
    conds.add("city");
    params.put("city", city);
}
if(state != null) {
    conds.add("state");
    params.put("state", state);
}

// do fetch
PersonDM [] res =
    (PersonDM [])dao.fetchWithNamedParams("searchPeople",
                                          conds,
                                          params);

Or, in our particular case, we can do it without a dedicated conds set:

PersonDM [] res =
    (PersonDM [])dao.fetchWithNamedParams("searchPeople",
                                          params.keySet(),
                                          params);

Configuring Database Connection

The DAO itself does not manage database connections, nor does it control database transactions. Instead, the application context provides it with the connection, and, regarding the transactions, all the DAO calls are supposed to be executed in a transactional context (or its absence) created and maintained elsewhere. How transactions work in CB2 we shall discuss later, while at this point we will see how to configure the application context so it maintains a pool, or multiple pools of database connections available to all other subsystems including the DAO.

The application context configuration file is called 'cb2app.properties' . In fact, this file contains a free set of application properties, just some of them have special meaning and are interpreted by the application context when it is being configured, for example, at the application startup (the application context can be reconfigured during the application operation at any time). The application context is able to maintain connections to multiple databases, each database is represented by a separate javax.sql.DataSource object and each data source object can be configured individually through the application context properties. Each data source is given a name. Data source names are free-form, except there is one special name "default" corresponding to the default data source. All over the API if a method leads to requesting a database connection from the application context it is possible to specify the name of the data source, with which the caller would like to work. If no name is specified the "default" is assumed making it easy for applications that work with a single data source.

There are two ways to configure a data source. The data source can be configured and created somewhere outside CB2, for example in the servlet container, and then made available through JNDI. All that the application context needs in this case is the name of the data source object, under which it can be found in the initial JNDI context. The name is provided with the 'com.boylesoftware.cb2.dataSource. data source name .jndiPath' application property. For example, we can have the following line in 'cb2app.properties' file:

com.boylesoftware.cb2.dataSource.default.jndiPath=java:comp/env/jdbc/myDataSource

Then the getDAO() method, used so frequently in the Java code samples above (in fact, we meant the BLObject 's getDAO method, which is going to be clear a little bit later), will return reference to a DAO connected to the default data source, which is the data source available under 'java:comp/env/jdbc/myDataSource' name in the JNDI.

If we had multiple data sources and needed a DAO connected to another database we would have something like this in the 'cb2app.properties' :

com.boylesoftware.cb2.dataSource.otherDatabase.jndiPath=java:comp/env/jdbc/otherDS

And we would call the getDAO with a parameter specifying the data source name:

DAO dao = getDAO("otherDatabase");

In fact getDAO() just calls getDAO("default") inside.

Note that CB2 creates a dedicated instance of DAO for each data source. Also, each individual DAO has its own <dao-config> section marked with the corresponding data source name in the BL configuration file.

The other way of configuring a data source allows us to develop applications in environments where JNDI is not available. In this case the application context creates and configures the data source object(s) on its own. Below is a fragment of 'cb2app.properties' file configuring the default data source as an Apache Commons Database Connection Pool (DBCP) connected to a PostgreSQL database:

com.boylesoftware.cb2.dataSource.default.class=org.apache.commons.dbcp.BasicDataSource
com.boylesoftware.cb2.dataSource.default.property.driverClassName=org.postgresql.Driver
com.boylesoftware.cb2.dataSource.default.property.url=jdbc:postgresql://mydbhost/mydatabase
com.boylesoftware.cb2.dataSource.default.property.username=mydbuser
com.boylesoftware.cb2.dataSource.default.property.password=mypassword
com.boylesoftware.cb2.dataSource.default.property.maxWait=-1
com.boylesoftware.cb2.dataSource.default.property.maxActive=10
com.boylesoftware.cb2.dataSource.default.property.maxIdle=0

The application context then creates an instance of org.apache.commons.dbcp.BasicDataSource and sets all 'property' properties on it as on a Java bean thus configuring it.

The Business Level

The buisness logic of the application is implemented in the BLOs. For our simple address book application we are going to need just one BLO, but usually many BLOs are created during application development, each covering its own piece of the business logic. Quite often BLOs are not that isolated and depend on each other calling each other's service, communicating. BLO implementations extend com.boylesoftware.cb2.BLObject abstract class and are provided with an internal service interface - a number of protected methods supposed to be called from the BLO's user-defined methods to access such subsystems as, say, application context or the DAO. Also, there is a number of callback methods invoked by the framework during the BLO's life-cycle. Beside those, a BLO implements custom business methods providing its clients with an API.

We recommend to call BLO classes with noun expressions naming a business entity or service and suffix the name with "BLO". Our only BLO class will be AddressBookBLO for the address book business entity:

package com.boylesoftware.cb2.examples.addressbook;

import com.boylesoftware.cb2.BLObject;

/**
 * BLO that represents the address book business entity.
 */
public class AddressBookBLO
    extends BLObject {

    //...
}

Now we shall discuss various aspects of a BLO implementation. Note, that a complete source code of AddressBookBLO can be downloaded along with the source code of the Address Book sample application.

BLO Life-cycle

The business level has a notion of user sessions. In a web-application the framework automatically keeps the list of BL user sessions synchronized with the servlet container's sessions, that is whenever a new HTTP session is created by the servlet engine a corresponding user session is created in the business level, and whenever an HTTP session dies the corresponding BL user session is destroyed. Although every HTTP session has a corresponding user session in the BL and the process of maintaining the two types of sessions synchronized is completely automatic, technically they are not the same - HTTP session is represented by a javax.servlet.http.HttpSession object, is maintained by the servlet engine and is considered a purely presentation level entity, while a BL user session is represented by a com.boylesoftware.cb2.BLOContainer object and is maintained by the BLManager .

When a new session is registered in the BL manager it creates a new instance (or takes an idle instance from the pool) of BLO container to represent the session. Then, the BLO container is populated with new instances of all BLOs that are defined in the BL configuration file (again, a new instance of a BLO is created or an idle instance is grabbed from the pool). Therefore, each individual user session has its own instance of a BLO container and a set of its own instances of all BLOs. Each BLO then is notified by calling its init method giving it a chance to initialize itself. The initialization of the BLOs is performed in the order defined in the BL configuration file, so one BLO can call service of another's in its init method if the other one is initialized first. This ends the session initialization phase and from this point the BLOs can be looked up in the BLO container by their deployment names and their business methods can be invoked.

When the session is being destroyed all the BLOs in the corresponding BLO container are notified by calling their destroy methods. After that the BLO container itself is destroyed and removed from the BL manager. In fact, instances of BLOs and BLO containers can be reused, meaning that instead of destoying them the BL manager can decide to cache the unused instances in a pool.

A BLO can be marked as "shared" in its descriptor in the BL configuration file. In this case it does not participate in the process described above. The meaning of a shared BLO is that its instance is shared by all user sessions instead of each session having its own instance of the BLO. All shared BLOs are instantiated and initialized by calling their init methods once at the application startup. Only one instance of each shared BLO exists within the application and is shared by all user sessions. The shared BLOs' init methods are very good place for any application initialization code. The BLOs' destroy methods are called when the whole application goes down.

If a BLO logically does not have any user session specific state it is a good candidate to be a shared BLO. Making it shared will make the application more efficient and less memory consuming. Shared BLOs are also often used for keeping application-wide caches of rarely changed data. For example, we could have a shared BLO that fetches the list of all US states from the database in its init method and stores the list in an internal member variable. Later, different parts of our application could read the list from the BLO without going to the database for it.

Note also, that because of the shared nature of shared BLOs when multiple user sessions share the same instance it is important for developers to pay attention to possible concurrent access synchronization issues. It is especially important in a web-application when multiple concurrent requests served by different threads are being processed at the same time and they all access the single instance of the shared BLO.

At the same time, the concurrent access issues in the case of regular, session-scope BLOs almost completely do not exist. The reason is that to access a BLO the client code first gets the corresponding to the session BLO container from the BL manager and then looks up the required BLO in it. When the BL manager returns a BLO container to the client it locks it and if any other thread requests the BLO container for the same session the BL manager will make it wait until the BLO container is released by the first thread and the first thread releases it after it made all the BLO calls it needed. In the most cases the client code does not have to do anything about the process of locking and unlocking BLO containers, it happens automatically behind the scenes and the client code is provided with a reference to the BLO container where it can look up and call BLOs. The mechanism of BLO container locking makes any concurrent access synchronization in regular BLO implementations almost completely unnecessary.

Accessing Other Subsystems from a BLO

BLOs can communicate with each other and with other CB2 subsystems. The BLObject abstract class contains a number of protected methods and member variables intended for the internal BLO usage. Table 2.1 lists the major elements of this internal service interface. These methods and variables can be accessed from the BLO's business and life-cycle methods.


Table 2.1: BLO internal service interface.
Method or Variable Usage
getApplicationContext() Returns reference to the application context giving access to all its services.
getBLOContainer() Returns reference to the BLO container, which contains this BLO. The BLO container then can be used to look up other BLOs in the same session or shared BLOs and call their service. When called from a shared BLO returns reference to the special shared BLO container, which is maintained by the BL manager and contains all shared BLO instances.
getDAO()
getDAO(" dataSourceName ")
Gets access to the DAO to call the database.
setRollbackOnly()
isRollbackOnly()
Allows to set (and check if already set) the current transactional context to the "rollback only" mode. In this mode regardless of what happens after the setRollbackOnly call the current transaction will be rolled back when it is finished. The same can be performed directly on the application context, so these are just convenience methods. See more on transaction handling below.
log This member variable is the logger to be used in the BLO's methods to log application-specific messages.


Business Methods

A BLO implements a set of custom public methods that represent its business API. Since we know what operations our sample web-application will need to perform on the address book we can define the AddressBookBLO 's interface:

public class AddressBookBLO
    extends BLObject {

    /**
     * Searches the database for person records matching a certain
     * condition.
     *
     * @param lastNameSubstr substring of a person's last name. null
     * if last name should not participate in the filter.
     * @param firstNameSubstr substring of a person's first name or
     * null.
     * @param citySubstr substring of the city name in a person's
     * home or business address or null.
     * @param state two-letter US state code in a person's home or
     * business address or null.
     *
     * @return array of descriptors of records matching the
     * condition or an empty array.
     *
     * @throws BLException if a database error happens.
     */
    public PersonShortDM [] searchPeople(String lastNameSubstr,
                                         String firstNameSubstr,
                                         String citySubstr,
                                         String state)
        throws BLException {

        //...
    }

    /**
     * Gets a person record details by the person id.
     *
     * @param personId id of the record requested.
     *
     * @return completely filled person DM with home and work
     * addresses and all phone numbers.
     *
     * @throws BLException if a database error happens or no
     * record with the specified id exists.
     */
    public PersonDM getPersonDetails(int personId)
        throws BLException {

        //...
    }

    /**
     * Creates new or updates existing person record basing in the
     * information provided in the specified DM. If personId in the
     * DM is equal or less than zero a new record is created,
     * otherwise an existing record with that id is updated.
     *
     * @param person a DM with the new data including home and work
     * address and phone numbers nested DMs.
     *
     * @return true if the operation was successful, false if there
     * the operation cannot be performed, for example, beacuse
     * another record with the same first and last names exist.
     * Check getLastErrors() if the method returns false.
     *
     * @throws BLException if a database error happens or trying
     * to update a record with personId which does not exist.
     */
    public boolean savePersonDetails(PersonDM person)
        throws BLException {

        //...
    }

    /**
     * If the savePersonDetails call was successful the BLO
     * remembers the DM for the saved person. This method gets it.
     * Can be used for a confirmation page after a person successful
     * save operation.
     *
     * @return DM of the last successfully saved person with personId,
     * home and work addresses, and all phone numbers set in it.
     * Returns null if no successful operation has been performed yet.
     */
    public PersonDM getLastSavedPersonDetails() {

        //...
    }

    /**
     * Deletes a person record from the database.
     *
     * @param personId id of the record to delete.
     *
     * @throws BLException if a database error happens or no record
     * with the specified id exist.
     */
    public void deletePerson(int personId)
        throws BLException {

        //...
    }
}

This should provide us with all we need when we will be implementing the presentation level.

Note, that methods that work with the database can throw an exception, namely com.boylesoftware.cb2.BLException . And also note, that the comment to the savePersonDetails mentions a method called getLastErrors . These are related to how BLOs handle various kinds of errors and exceptional situations. Let's discuss it in the following section.

Error Handling

In CB2 we distinguish two major kinds of errors: unexpected from the business logic point of view technical problems that should not happen during normal application operation, and errors that can normally happen during the workflow due to, for example, incorrect user input. The first kind usually results in a special error screen displayed to users, the error description logged, the current transaction rolled back, a notification emailed or paged to the operator and all those kinds of serious consequences. The second kind usually results just in a message displayed to the user asking to correct the causes why his request cannot be accepted by the application and try again. An example of the first kind of error could be an unexpected SQLException originating in the JDBC driver telling that the database became unavailable for this or that reason in response to a DAO call. Clearly, this kind of exceptional situation does not fit into the normal, supposed business logic workflow and can be considered an application failure. At the same time, when a new person record cannot be created because the user specified first and last name of an already existing record it cannot be considered to be any sort of application failure and illustrates the second type or error being, in fact, a normal business situation, upon which the application should explain to the user why the request cannot be accepted and suggest to correct the data.

CB2 encourages usage of different ways of reporting and processing the two different types of errors. Encourages, but does not insist, of course. It is recommended to report unexpected application failures orignating in the business level by throwing a com.boylesoftware.cb2.BLException or a custom application specific exception derived from the BLException . Almost every DAO method throws a BLException in case any database problems so there is usually no need to catch and rethrow any exceptions in business methods of BLOs. A BLException can also be created and thrown from a business method of a BLO in response to unexpectedly invalid call. For example, getPersonDetails method in the AddressBookBLO assumes that existance of the record corresponding to the specified id is checked elsewhere before the method is called and thus it throws an exception if no record has the specified personId :

public PersonDM getPersonDetails(int personId)
    throws BLException {

    PersonDM [] res = (PersonDM [])this.getDAO().
        fetch("fetchPersonById",
              new Object [] { new Integer(personId) });

    // check if the select returned a record
    if(res.length < 1)
        throw new BLException("Person with id [" + personId +
                              "] does not exist.");

    return res[0];
}

The errors that are not application failures can be reported by the business methods without throwing any exceptions. For example, a method can return a special value used to indicate that the call was unsuccessful. In addition to returning a special value the method optionally uses protected BLObject method called setErrors to store in the BLO's special internal member variable a com.boylesoftware.cb2.BLErrors object containing information about what excactly has happened. The caller analyzes the returned value after the business method call and if it indicates that there were problems it calls getLastErrors public method on the BLO, which returns the BLErrors object set inside of the last called business method to see what was the error or errors. The getLastErrors method automatically clears the BLO's internal variable that holds BLErrors so if called immediately once again getLastErrors will return no errors until another business method sets new BLErrors object.

Our AddressBookBLO has a method called savePersonDetails , which does not allow setting first and last name for a record if another record already has the same. It is perfectly normal though if a user tries to submit such a request, so throwing an exception and displaying a special application failure page in response is not appropriate. Instead, the savePersonDetails method returns false indicating that the request was not fulfilled and sets BLErrors with the particular error code:

...

/**
 * Error code indicating that a person with the same
 * first and last name already exists.
 */
public static final int ERROR_NAME_EXISTS = 1;

...

/**
 * DM of the last successfully saved person. Set by savePersonDetails,
 * used by getLastSavedPersonDetails.
 */
private PersonDM lastSavedPerson;

...

public boolean savePersonDetails(PersonDM person)
    throws BLException {

    // get the DAO
    DAO dao = this.getDAO();

    // create personId wrapper, we will need it multiple times later
    Integer personId = new Integer(person.personId);

    // check if a record with the same first and last names
    // but different personId exists
    Set conds = new HashSet(1);
    Map params = new HashMap(3);
    // include first name check if specified
    if(person.firstName != null) {
        conds.add("firstName");
        params.put("firstName", person.firstName);
    }
    params.put("lastName", person.lastName);
    // if it's a new record then personId is invalid and no record
    // exists with the same personId
    params.put("personId", personId);
    // this query selects personIds (into PersonDM for example) of records
    // with the specified names and different from the specified personIds
    if(dao.fetch("checkIfSameNameAndDiffIdExists",
                 conds,
                 params).length > 0) {
        BLErrors errors = new BLErrors(1);
        errors.addError(ERROR_NAME_EXISTS);
        this.setErrors(errors);
        return false;
    }

    // see if we are creating a new record or updating an existing one
    if(person.personId > 0) { // update

        // fetch existing record (will throw BLException if person
        // does not exist)
        PersonDM oldPerson = this.getPersonDetails(person.personId);

        // delete existing phone numbers
        dao.update("deletePhonesByPersonId",
                   new Object [] { personId });

        // update home address
        if((person.homeAddress != null) && (oldPerson.homeAddress != null)) {
            person.homeAddress.addressId = oldPerson.homeAddress.addressId;
            dao.update(person.homeAddress);
            person.homeAddressId = oldPerson.homeAddressId;
        } else if((person.homeAddress != null) && (oldPerson.homeAddress == null)) {
            dao.insert(person.homeAddress);
            person.homeAddressId = new Integer(person.homeAddress.addressId);
        } else if((person.homeAddress == null) && (oldPerson.homeAddress != null)) {
            dao.delete(oldPerson.homeAddress);
            person.homeAddressId = null;
        } else {
            person.homeAddressId = null;
        }

        // update work address
        // (here goes code same as for home address, we skip it)
        ...

        // update person record
        dao.update(person);

        // reinsert phone numbers
        if(person.phones != null) {
            for(int i = 0; i < person.phones.length; i++) {
                person.phones[i].personId = person.personId;
                dao.insert(person.phones[i]);
            }
        }

    } else { // create new

        // insert home address record
        if(person.homeAddress != null) {
            dao.insert(person.homeAddress);
            person.homeAddressId = new Integer(person.homeAddress.addressId);
        } else
            person.homeAddressId = null;

        // insert work address record
        // (here goes code same as for home address, we skip it)
        ...

        // insert person record
        dao.insert(person);

        // insert phone records
        if(person.phones != null) {
            for(int i = 0; i < person.phones.length; i++) {
                person.phones[i].personId = person.personId;
                dao.insert(person.phones[i]);
            }
        }
    }

    // save the last saved DM in the member variable for
    // getLastSavedPersonDetails method
    this.lastSavedPerson = person;

    // all done, report success
    return true;
}

In the client code, which can be a presentation level's action, we call the method like this:

if(!addressBook.savePersonDetails(person)) {
    BLErrors errors =  addressBook.getLastErrors();
    if(errors.containsError(AddressBookBLO.ERROR_NAME_EXISTS)) {
        // do whatever we need to do to send the user a message and
        // redisplay the input form
        ...
    }
}

BLO Deployment and Usage

All BLOs must have a descriptor in the 'blo-config.xml' file. The descriptor defines by what name the BLO can be looked up in a container, what class implements it, and whether it is a shared or a regular BLO. For our address book BLO we will have the following descriptor:

<?xml version="1.0" encoding="ISO-8859-1"?>

<!DOCTYPE blo-config PUBLIC
  "-//Boyle Software, Inc.//DTD CB2 Business Level Configuration 1.0//EN"
  "http://www.cb2project.com/dtd/blo-config_1_0.dtd">

<blo-config>

  <!--
    - BLO descriptors.
   -->

  <blo name="addressBook">
    <class>com.boylesoftware.cb2.examples.addressbook.AddressBookBLO</class>
  </blo>


  <!--
    - The DAO configuration.
   -->
  <dao-config>

     ...

  </dao-config>

</blo-config>

Now the BLO can be looked up in the BLO container and its service interface can be called:

// get the BLO container (discussed later)
BLOContainer bloc = getBLOContainer();

// lookup the BLO
AddressBookBLO addressBook = (AddressBookBLO)bloc.getBLO("addressBook");

// call business method
PersonDM person = addressBook.getPersonDetails(personId);

To deploy a shared BLO just add 'shared' attribute to the <blo> element:

<blo name="listsCache" shared="true">
  <class>com.mycompany.myproject.ListsCacheSharedBLO</class>
</blo>

It can be looked up in exactly the same manner as a regular BLO in any BLO container. Any BLO container corresponding to any user session will always return reference to the same instance of a BLO if it is a shared BLO.

BLO Initialization Parameters

BLO can be a reusable unit. Sometimes it is convenient to create a more or less generic BLO class for some piece of business logic and then use it in different applications. However, quite often, this requires an ability to configure the BLO to tune it for usage in a particular application. It can be done with BLO initialization parameters that are a set of name-value pairs specified in a BLO's deployment descriptor in 'blo-config.xml' file.

For example, we could have a shopping cart BLO, which has two configuration parameters: maximum number of products allowed in a cart, and deployment name of another BLO which represents a product and implements some standard interface. Then the shopping cart's deployment descriptor could be:

<blo name="shoppingCart">
  <class>com.mycompany.myproject.ShoppingCartBLO</class>
  <init-param>
    <param-name>maxProducts</param-name>
    <param-value>12</param-value>
  </init-param>
  <init-param>
    <param-name>productBLOName</param-name>
    <param-value>product</param-value>
  </init-param>
</blo>

The initialization parameters can be accessed from within a BLO using BLObject 's getInitParameter protected method. For the example above we could have this code in the init or any business method:

// get max number of products
String maxProductsS = this.getInitParameter("maxProducts");
this.maxProducts = (maxProductsS != null ?
                    Integer.parseInt(maxProductsS) :
                    10);

...

// lookup the product BLO
ProductBLO product = (ProductBLO)this.getBLOContainer().
    getBLO(this.getInitParameter("productBLOName"));

About Transaction Management

Although we are going to discuss transaction management in detail later in this manual, it is time to make couple of remarks on this issue now. In CB2 the idea is that business level does not manage transaction boundaries. Of course, in advanced cases when application needs it, transactions can be managed at any level where application context is available, however, in the most common case it is assumed that the code, which calls the business level, controls when transactions start, when finish and whether to call the BL in any transaction at all. In a web-application such a client code calling the BL is the presentation level, that is actions, presentation elements and other components of the servlet-based PL.

The justification for this approach is that the client code may want to call multiple BLOs multiple times to achieve the action's goal and make it within one transaction. Only the caller "sees" the "big picture", while the BLOs execute just pieces of the whole action. The client code then is the most appropriate place to control transaction boundaries. Nevertheless, in a BLO's business method setRollbackOnly can be called to mark current transaction, if there is any, for rollback only. The method can be called when the BLO encounters an error which it does not want to report throwing a BLException but still any changes made to the database in the same transaction before the call and those will be made after should be ignored and the transaction should be rolled back. For optimization purposes a "smart" client can analyze the current transaction context if it is marked for rollback only after the BLO call and immediately abort the action without making any further calls to the BL.

In CB2 there is a notion of transaction context, which is an object representing current state of a transaction. Transaction contexts are automatically created by the application context and are bound to the JVM threads so there is no need to pass them around as method arguments - anywhere in the application where application context is available it is possible to get the current thread's transaction context. Isolated, not bound to any threads transaction contexts also can be created and used, but this feature is not used widely.

In the case of servlet-based presentation level transactions are managed automatically, we will see how later in this manual, so it is very rare case when developers should worry about calling transaction management methods of the application context directly from the application code.

The Presentation Level

In terms of our address book web-application, by this point we have got our business level implementation in the form of SQL queries defined in the DAO configuration and our AddressBookBLO with its service interface. Now we are ready to build our application's user interface, that is the presentation level implementation.

The discussion below assumes that the reader is familiar with Apache Struts framework.

Setup

The CB2 PL is based on Struts and requries Struts to be set up for the application. The CB2 itself is set up as a Struts plug-in, which installs its own implementations of the request processor replacing the default ones. To configure our application to use CB2 PL we first map all requests to the Struts action servlet in the web-application deployment descriptor, that is the 'web.xml' file:

...
<web-app>

  ...

  <!--
    - Define Struts action servlet.
   -->
  <servlet>
    <servlet-name>action</servlet-name>
    <display-name>Struts Action Servlet</display-name>
    <servlet-class>org.apache.struts.action.ActionServlet</servlet-class>
    <load-on-startup>1</load-on-startup>
  </servlet>

  ...

  <!--
    - Map requests to the Struts action servlet.
   -->
  <servlet-mapping>
    <servlet-name>action</servlet-name>
    <url-pattern>*.cb2</url-pattern>
  </servlet-mapping>

  ...

</web-app>

All requests to URLs ending in '.cb2' will be forwarded to the action servlet, and then, through the request processor of a corresponding Struts module (in the example above there is only one, default module is defined with configuration in '/WEB-INF/struts-config.xml' ), to an appropriate page or action. In CB2, the same way as in Struts, it is recommended that all the requests go this way, through the action servlet, and no direct requests to JSPs are ever made.

Now, in the Struts configuration file for every Struts module, with which we would like to use CB2 (that is for all the modules usually, or for the only one), we set up the CB2 plug-in. In 'struts-config.xml' :

...
<struts-config>

  ...

  <plug-in className="com.boylesoftware.cb2.presentation.servlet.CB2PlugIn">
  </plug-in>

</struts-config>

When the application starts, the plug-in installs com.boylesoftware.cb2.presentation.servlet.CB2RequestProcessor as the request processor for the module. The plug-in has a number of configuration parameters that can be set using <set-property> subelements in the <plug-in> element. See CB2PlugIn documentation for all available options.

Defining Pages and Components

The application will have three pages: one allowing listing and searching people, one with person details used for creating new profiles, updating existing ones and just seeing all the details for a person, and finally one confirmatin page displayed after successful modification of data such as updating, creating and deleting profiles. See the user interface diagram with all the components on Figure 2.2.

Figure 2.2: User interface pages.
Image pic6

Every page in the UI has a defining descriptor in the pages-config.xml file. A page descriptor defines the page's unique name, to what URL the page is mapped, and from what components it is composed. Components, which are basically JSP files, also have descriptors in the 'pages-config.xml' . Every component JSP file has a component descriptor, which associates a unique component name with the JSP file. A component can play one of two major roles: it can be a template component, one which defines the page layout and is the top-level peice of JSP which may include other components that play the second role, the role of an includable component. Every page ultimately has one template component and it is defined in the page's descriptor. In the template component's JSP other components are included using <cb2:insert> tag which takes a component reference name, which the page descriptor defines the mapping between used on the page component reference names and real components defined in the 'pages-config.xml' file.

In our simple web-application there is no need in includable components - we've got three completely different pages each with its own layout and therefore we need just three corresponding template components, that is JSPs, defining both the layouts and contents. The 'pages-config.xml' then looks like this:

<?xml version="1.0" encoding="ISO-8859-1"?>

<!DOCTYPE pages-config
  PUBLIC "-//Boyle Software, Inc.//DTD CB2 Pages Configuration 1.0//EN"
  "http://www.cb2project.com/dtd/pages-config_1_0.dtd">

<pages-config>

  <!--
    - Template component for the "Search People" page.
   -->
  <component name="peopleSearch" src="/peopleSearch.jsp">
  </component>
  <!--
    - The "Search People" page.
   -->
  <page name="peopleSearch" template="peopleSearch" path="/peopleSearch">
  </page>

  <!--
    - Template component for the "Person Details" page.
   -->
  <component name="personDetails" src="/personDetails.jsp">
  </component>
  <!--
    - The "Person Details" page.
   -->
  <page name="personDetails" template="personDetails" path="/personDetails">
  </page>

  <!--
    - Template component for the confirmation page.
   -->
  <component name="confirmation" src="/confirmation.jsp">
  </component>
  <!--
    - The confirmation page.
   -->
  <page name="confirmation" template="confirmation" path="/confirmation">
  </page>

</pages-config>

Note that 'src' attribute of component element, defining the corresponding to this component JSP file, and 'path' attribute of page element, defining the URL to which this page is mapped, both these attributes use context-relative URLs. In addition to that, it is not necessary to specify URL extention in 'path' attributes if extention-based mapping is used in the 'web.xml' web-application deployment descriptor to map requests to the Struts Action Servlet, just the same way as it is not necessary to do that when mapping actions to URLs in the standard 'struts-config.xml' file. In fact, behind the scenes CB2 creates a Struts action mapping for every page associating the URL with com.boylesoftware.cb2.presentation.servlet.ShowPageAction , which is a special action that loads the page.

Now, let's imagine that all our pages follow the same basic layout and have, for example a header at the top of the page with the application title and other visual elements such as a clock, number of records in the database and maybe some other information. This is shown on Figure 2.3.

Figure 2.3: Page layout.
Image pic7

Each page consists of three components: one template defining the page layout, and two includable components for the header and the content. Our 'pages-config.xml' file then will contain the following:

<!--
  - Template component with page layout.
 -->
<component name="layout" src="/templates/layout.jsp">
</component>

<!--
  - Component for the header.
 -->
<component name="header" src="/components/header.jsp">
</component>

<!--
  - Content component for the "Search People" page.
 -->
<component name="peopleSearch" src="/components/peopleSearch.jsp">
</component>
<!--
  - The "Search People" page.
 -->
<page name="peopleSearch" template="layout" path="/peopleSearch">
  <componentref name="header" component="header"/>
  <componentref name="content" component="peopleSearch"/>
</page>

<!--
  - Content component for the "Person Details" page.
 -->
<component name="personDetails" src="/components/personDetails.jsp">
</component>
<!--
  - The "Person Details" page.
 -->
<page name="personDetails" template="layout" path="/personDetails">
  <componentref name="header" component="header"/>
  <componentref name="content" component="personDetails"/>
</page>

<!--
  - Content component for the confirmation page.
 -->
<component name="confirmation" src="/components/confirmation.jsp">
</component>
<!--
  - The confirmation page.
 -->
<page name="confirmation" template="layout" path="/confirmation">
  <componentref name="header" component="header"/>
  <componentref name="content" component="confirmation"/>
</page>

And then the 'layout.jsp' will include <cb2:insert> tags:

<%@taglib uri="/WEB-INF/struts-html.tld" prefix="html"%>
<%@taglib uri="/WEB-INF/cb2.tld" prefix="cb2"%>

<html:html>

  <head>
    <title>Address Book</title>
  </head>

  <body>

    <!-- HEADER -->
    <div>
    <cb2:insert name="header"/>
    </div>

    <!-- CONTENT -->
    <div>
    <cb2:insert name="content"/>
    </div>

  </body>

</html:html>

In place of <cb2:insert> tags content of the corresponding components will be inserted. But what if we also would like to have different page titles on each page? Having separate components and JSP files containing just one single line for the title does not seem very attractive, although it would work. Instead, pages, along with component references, can have attributes, which are simple name-value pairs - a <cb2:insert> tag referring to an attribute will be replaced with the attribute's value. For example, in the 'pages-config.xml' file:

...
<page name="personDetails" template="layout" path="/personDetails">
  <attribute name="title" value="Person Details"/>
  <componentref name="header" component="header"/>
  <componentref name="content" component="personDetails"/>
</page>
...

And in the 'layout.jsp' :

...
<head>
  <title>Address Book - <cb2:insert name="title"/></title>
</head>
...

Which, in the case of person details page, will be rendered into:

...
<head>
  <title>Address Book - Person Details</title>
</head>
...

Let's notice, that our three pages all have something in common: they are based on the same template component and they all include the same header component. What we can do is define one "abstract" page and make our three "concrete" pages "extend" it, which will make our pages definitions better structured:

<!--
  - Template component with page layout.
 -->
<component name="layout" src="/templates/layout.jsp">
</component>

<!--
  - Component for the header.
 -->
<component name="header" src="/components/header.jsp">
</component>

<!--
  - Abstract parent page.
 -->
<page name="commonLayoutPage" template="layout">
  <componentref name="header" component="header"/>
</page>

<!--
  - The "Search People" page.
 -->
<component name="peopleSearch" src="/components/peopleSearch.jsp">
</component>
<page name="peopleSearch" extends="commonLayoutPage" path="/peopleSearch">
  <componentref name="content" component="peopleSearch"/>
</page>

<!--
  - The "Person Details" page.
 -->
<component name="personDetails" src="/components/personDetails.jsp">
</component>
<page name="personDetails" extends="commonLayoutPage" path="/personDetails">
  <componentref name="content" component="personDetails"/>
</page>

<!--
  - The confirmation page.
 -->
<component name="confirmation" src="/components/confirmation.jsp">
</component>
<page name="confirmation" extends="commonLayoutPage" path="/confirmation">
  <componentref name="content" component="confirmation"/>
</page>

Note two important features: first, abstract pages do not have 'path' attribute and thus are not mapped to any URL, second, pages that extend a parent page do not have 'template' attribute, because the template of the parent is inherited.

Using Presentation Elements

It is a standard Struts approach to put Java beans into a page context, usually in the request or in the session scope, and then have the page's JSP code to form its dynamic content basing on the data in the beans using Struts JSP tags such as <bean: xxx > and <logic: xxx > tags. In Struts we usually have an action invoked first during a request processing and only then the action forwards to a page. This way the action is the place where beans for the pages are created, populated and put to this or that scope. In CB2, along with the regular Struts actions, we have got pages that are directly mapped to URLs and there is no user-defined action called before passing control to the page. So, how do beans get into page context then? In CB2 those Java beans, called Presentation Elements (PElements or PEs), actually populate themselves. Before control is passed to a page's template component JSP, all presentation elements used in all components that comprise the page are instantiated and their init method is called giving them a chance to populate themselves so the component JSPs later can read the data from them using JSP tags. Presentation elements used in a component are declared in the component's descriptor in the 'pages-config.xml' file. Among other parameters every presentation element descriptor associates a name, which can be used to access the element from the component's JSP, with a Java class implementing com.boylesoftware.cb2.presentation.servlet.PresentationElement interface.

For example, let's consider our "Search People" page. We have got an area on it, which displays search results and, as a piece of dynamic content, it will need a presentation element. This presentation element will actually perform the search in the business level and then populate its internal property with the search result. That internal property, which is going to be an array, will be read later from the component's JSP and rendered into a list of records found.

An important issue is how the presentation element gets search parameters. As we can see on our UI diagram the form with the search parameters is located on the same page and it submits its input to the same "Search People" page as well. Therefore, when the presentation element is called for initialization the form's input will be available as the request parameters, so the most straightforward way is just to read them from the request in the presentation element. Another issue is that in the presentation element we need to distinguish if the page is being displayed as a result of the search form submission, and then perform the search, or it was requested directly and no search should be performed resulting in an empty search reasult list displayed. We do it by adding a hidden field into the form and by cheking its presence in the request we can tell if the form was indeed submitted or not.

Let's see how the form can be defined in the component's JSP, that is 'peopleSearch.jsp' file:

...
<form action='<html:rewrite page="/peopleSearch.cb2"/>'>
  <input type="hidden" name="doSearch" value="true"/>
  <table>
    <tr> <td>Last Name</td>  <td><input type="text" name="lastNameSubstr"/></td>  </tr>
    <tr> <td>First Name</td> <td><input type="text" name="firstNameSubstr"/></td> </tr>
    <tr> <td>City</td>       <td><input type="text" name="citySubstr"/></td>      </tr>
    <tr> <td>State</td>      <td><input type="text" name="state"/></td>           </tr>
  </table>
</form>
...

The presentation element then can be implemented like this (note, that we recommend to call presentation element classes with noun expressions suffixed by "PE"):

package com.boylesoftware.cb2.examples.addressbook;

import javax.servlet.http.HttpServletRequest;

import com.boylesoftware.cb2.BLException;
import com.boylesoftware.cb2.presentation.servlet.PresentationElement;
import com.boylesoftware.cb2.presentation.servlet.ActionContext;

public class PeopleSearchResultPE
    implements PresentationElement {

    //
    // bean properties accessed from the component JSP
    //

    /**
     * Represents one record in the search result list.
     */
    public static class ResultElement {

        private final int personId;
        public int getPersonId() { return this.personId; }

        private final String name;
        public String getName() { return this.name; }

        public ResultElement(int personId, String name) {

            this.personId = personId;
            this.name = name;
        }
    }

    /**
     * The search result. If it is null it means no search was performed.
     */
    private ResultElement [] searchResult;
    public ResultElement [] getSearchResult() { return this.searchResult; }
    public boolean getWasSearchPerformed() { return (this.searchResult != null); }
    public boolean getNoResults() { return (this.searchResult.length == 0); }

    //
    // presentation element interface
    //

    /**
     * Initialize the presentation element before using it on a page.
     *
     * @param actionCtx current action context, an object used to access other
     * subsystems including the business level.
     *
     * @throws BLException if an error in the BL happens.
     */
    public void init(ActionContext actionCtx)
        throws BLException {

        // get the request object
        HttpServletRequest request = actionCtx.getRequest();

        // check if search was requested (the form was submitted)
        if("true".equals(request.getParameter("doSearch"))) {

            // get search parameters
            String lastNameSubstr = request.getParameter("lastNameSubstr");
            if(lastNameSubstr != null)
                if((lastNameSubstr = lastNameSubstr.trim()).length() == 0)
                    lastNameSubstr = null;
            String firstNameSubstr = request.getParameter("firstNameSubstr");
            if(firstNameSubstr != null)
                if((firstNameSubstr = firstNameSubstr.trim()).length() == 0)
                    firstNameSubstr = null;
            String citySubstr = request.getParameter("citySubstr");
            if(citySubstr != null)
                if((citySubstr = citySubstr.trim()).length() == 0)
                    citySubstr = null;
            String state = request.getParameter("state");
            if(state != null)
                if((state = state.trim()).length() == 0)
                    state = null;

            // do search
            PersonShortDM [] people = ((AddressBookBLO)actionCtx.getBLO("addressBook")).
                searchPeople(lastNameSubstr, firstNameSubstr, citySubstr, state);

            // put the result into searchResult property
            this.searchResult = new ResultElement[people.length];
            for(int i = 0; i < people.length; i++) {
                this.searchResult[i] =
                    new ResultElement(people[i].personId,
                                      people[i].lastName + ", " + people[i].firstName);
            }
        }
    }

    /**
     * Reset all internal properties to the default state. Called before the
     * init method.
     */
    public void reset() {

        // by default we assume that the form was not submitted
        // (see getWasSearchPerformed and init methods)
        this.searchResult = null;
    }
}

Note the actionCtx argument passed to the init method. Action context provides interface to other subsystems to presentation elements and actions. Particularly, action context contains an already prepared and locked BLO container, which can be used to communicate with the business level. The getBLO method we use in the code above is actually the same as actionCtx.getBLOContainer().getBLO("addressBook") .

In order to be able to use our presentation element in the JSP we have to associate it with the component in the 'pages-config.xml' file:

...
<component name="peopleSearch" src="/peopleSearch.jsp">
  <pelement
    name="peopleSearchResult"
    class="com.boylesoftware.cb2.examples.addressbook.PeopleSearchResultPE"/>
</component>

<page name="peopleSearch" template="peopleSearch" path="/peopleSearch">
</page>
...

In the 'peopleSearch.jsp' we can use now Struts tags to access the presentation element as a Java bean stored in the page context under 'peopleSearchResult' name:

...
<table>
  <caption>Search Result</caption>
  <logic:equals name="peopleSearchResult" property="wasSearchPerformed" value="true">
  <tr><td>Search people by submitting the form above.</td></tr>
  </logic:equals>
  <logic:equals name="peopleSearchResult" property="wasSearchPerformed" value="false">
  <logic:equals name="peopleSearchResult" property="noResults" value="true">
  <tr><td>No records found.</td></tr>
  </logic:equals>
  <logic:equals name="peopleSearchResult" property="noResults" value="false">
  <logic:iterate id="rec" name="peopleSearchResult" property="searchResult">
  <tr>
    <td><bean:write name="rec" property="name"/></td>
    <td><html:link
          page="/personDetails.cb2"
          paramId="personId"
          paramName="rec"
          paramProperty="personId">[edit]</html:link></td>
    <td><html:link
          page="/deletePerson.cb2"
          paramId="personId"
          paramName="rec"
          paramProperty="personId">[delete]</html:link></td>
  </tr>
  </logic:iterate>
  </logic:equals>
  </logic:equals>
</table>
...

Global Presentation Elements

A situation is possible when the same presentation element is used in multiple components. One way to handle it is to include a <pelement> element referring to the same class to all the components that use it. Another way is to define a global presentation element and declare all the components that need it as depending on it. A global presentation element is different from a local, that is component-scope presentation element in a number of ways. First, it is not associated with any particular component, it is defined in the global scope, it has a name, which is unique among all global presentation elements. Another feature of a global presentation element is that it can "depend" on other global presentation elements. This means that other global presentation elements will be created and initialized too whenever this one is used. To define a global presentation element use <global-pelement> element, to use it with a component use <depends> element within the component descriptor:

...

<global-pelement name="gpelement1" class="my.company.GPElementPE">
</global-pelement>

...

<component name="component1" src="myComponent.jsp">
  <depends on="gpelement1"/>
</component>

...

The global presentation element can be used from the component's JSP just in the same way as a local presentation element, in this example using name 'gpelement1' .

To build a dependency chain, or even a tree of global presentation elements use <depends> elements within <global-pelement> elements:

...

<global-pelement name="gpelement1" class="my.company.GPElementPE">
</global-pelement>

<global-pelement name="gpelement2" class="my.company.GPElement2PE">
  <depends on="gpelement1"/>
</global-pelement>

<global-pelement name="gpelement3" class="my.company.GPElement3PE">
</global-pelement>

<global-pelement name="gpelement4" class="my.company.GPElement4PE">
  <depends on="gpelement2"/>
  <depends on="gpelement3"/>
</global-pelement>

...

<component name="component1" src="myComponent.jsp">
  <depends on="gpelement4"/>
</component>

...

If gathering all presentation elements for a page the system finds duplicates it eliminates them, therefore there is a guarantee that each used on a page presentation element will be initialized only once. Also, the system initializes the presentation elements in the correct dependency order. In the example above, whenever the 'component1' component is used on a page all four global presentation elements will be created, made available from the component JSP and initialized in the following order: 'gpelement1' , 'gpelement2' , 'gpelement3' , 'gpelement4' . If the component had also local presentation elements they would be initialized after the global presentation elements. The defined order of presentation elements initialization allows, when multiple presentation elements are used in a component, to pass data between the elements through, for example, request attributes, or presentation element input parameters discussed right below.

Input Parameters

Let's go back to our search result presentation element implementation for a moment now and see how we can improve it. Presentation elements can have input parameters that are automatically set into the bean as bean properties before the init method call. CB2 can look for input parameters in various sources, such as request attributes or parameters, session attributes and so on. Also, it can perform some simple validation and transformation reducing the number of checks in the presentation element implmentation. In the case of PeopleSearchResultPE we read form input from the request parameters and the code could be simplified if we used input paramters for that. First, let's add bean properties corresponding to the input parameters:

public class PeopleSearchResultPE
    implements PresentationElement {

    ...

    //
    // input parameters
    //

    private boolean doSearch;
    public void setDoSearch(boolean doSearch) {
        this.doSearch = doSearch;
    }
    private String lastNameSubstr;
    public void setLastNameSubstr(String lastNameSubstr) {
        this.lastNameSubstr = lastNameSubstr;
    }
    private String firstNameSubstr;
    public void setLastNameSubstr(String firstNameSubstr) {
        this.firstNameSubstr = firstNameSubstr;
    }
    private String citySubstr;
    public void setLastNameSubstr(String citySubstr) {
        this.citySubstr = citySubstr;
    }
    private String state;
    public void setLastNameSubstr(String state) {
        this.state = state;
    }

    ...
}

In the presentation element descriptor in the 'pages-config.xml' file we have to describe the input parameters:

...
<component name="peopleSearch" src="/peopleSearch.jsp">
  <pelement
    name="peopleSearchResult"
    class="com.boylesoftware.cb2.examples.addressbook.PeopleSearchResultPE">
    <param name="doSearch"/>
    <param name="lastNameSubstr"/>
    <param name="firstNameSubstr"/>
    <param name="citySubstr"/>
    <param name="state"/>
  </pelement>
</component>
...

Now, in the init method we can just read the properties, because they will be automatically set from the request before the init call:

public void init(ActionContext actionCtx)
    throws BLException {

    // check if search was requested (the form was submitted)
    if(this.doSearch) {

        // do search
        PersonShortDM [] people = ((AddressBookBLO)actionCtx.getBLO("addressBook")).
            searchPeople(this.lastNameSubstr,
                         this.firstNameSubstr,
                         this.citySubstr,
                         this.state);

        // put the result into searchResult property
        this.searchResult = new ResultElement[people.length];
        for(int i = 0; i < people.length; i++) {
            this.searchResult[i] =
                new ResultElement(people[i].personId,
                                  people[i].lastName + ", " + people[i].firstName);
        }
    }
}

Parameters validation can be customized using 'required' and 'emptystring' attributes of <param> element in the presentation element deascriptor. From where the parameter's value is taken is configured by the 'from' attribute. See the DTD for 'pages-config.xml' for all available options. Note that by default, which is our case since we did not specify any of the mentioned attributes, parameter values are taken from the request (request parameters checked first, and then request attributes), they are optional, that is if a parameter is not present in the request no attempt to set it in the presentation element will be taken, and if a parameter's value is an empty or blank (consisting of only whitespace characters) string a null will be set into the corresponding presentation element property.

Since our input parameters are optional it is important to set their default values in the reset method, because if they are not present in the request, that is the form was not submitted, and the presentation element instance is reused old values may be left in the fields and break our logic. It is especially conserns the 'doSearch' parameter, while others can be cleared just to make it look nicer:

public void reset() {

    // reset PE properties
    this.searchResult = null;

    // reset input parameters
    this.doSearch = false; // don't do search if the form was not submitted
    this.lastNameSubstr = null;
    this.firstNameSubstr = null;
    this.citySubstr = null;
    this.state = null;
}

The main purpose of the reset method is to set default values to all optional input parameters, because, as mentioned above, if an optional parameter is not present the setter will not be called at all.

Using Form Beans as Presentation Elements Input

There is another way to pass the form data to the presentation element as well - to use Struts ActionForm bean. It is possible to associate a form bean with a presentation element, just the same way as it is possible to do for an action in standard Struts. In Struts we tell that an action expects a form bean at its input by specifying 'name' attribute to the action mapping in 'struts-config.xml' file and this attribute names the form bean defined by a <form-bean> element in the same Struts configuration. To tell that a presentation element expects a form bean in the action context we use 'inputForm' attribute with the corresponding <pelement> (or <global-pelement> ) element. The 'inputForm' attribute names a form bean reference defined with a <formbeanref> element, which in turn referes to a Struts form bean.

For forms, that should be prepopulated before being displayed on a page, it is often convenient to define one single class that extends Struts' ActionForm and implements PresentationElement interface at the same time. It allows to have a single set of form fields in one class rather than in two.

In our example we could have this presentation element representing the search form:

package com.boylesoftware.cb2.examples.addressbook;

import javax.servlet.http.HttpServletRequest;

import org.apache.struts.action.ActionForm;
import org.apache.struts.action.ActionMapping;
import com.boylesoftware.cb2.presentation.servlet.PresentationElement;
import com.boylesoftware.cb2.presentation.servlet.ActionContext;

public class PeopleSearchFormPE
    extends ActionForm
    implements PresentationElement {

    //
    // form fields
    //

    private boolean doSearch;
    public boolean getDoSearch() { return this.doSearch; }
    public void setDoSearch(boolean doSearch) {
        this.doSearch = doSearch;
    }

    private String lastNameSubstr;
    public String getLastNameSubstr() { return this.lastNameSubstr; }
    public void setLastNameSubstr(String lastNameSubstr) {
        this.lastNameSubstr = lastNameSubstr;
    }

    private String firstNameSubstr;
    public String getLastNameSubstr() { return this.firstNameSubstr; }
    public void setLastNameSubstr(String firstNameSubstr) {
        this.firstNameSubstr = firstNameSubstr;
    }

    private String citySubstr;
    public String getLastNameSubstr() { return this.citySubstr; }
    public void setLastNameSubstr(String citySubstr) {
        this.citySubstr = citySubstr;
    }

    private String state;
    public String getLastNameSubstr() { return this.state; }
    public void setLastNameSubstr(String state) {
        this.state = state;
    }

    //
    // presentation element interface
    //

    public void init(ActionContext actionCtx) {}
    public void reset() {}

    //
    // action form methods
    //

    /**
     * Reset fields before setting them from the request parameters.
     */
    public void reset(ActionMapping mapping, HttpServletRequest request) {

        this.doSearch = false;
        this.lastNameSubstr = null;
        this.firstNameSubstr = null;
        this.citySubstr = null;
        this.state = null;
    }
}

The two reset methods, despite having the same name, actually belong to different subsystems and play different non-overlapping roles. The one without arguments belongs to the PresentationElement interface and is called by the framework before calling the init method. Its main purpose is to reset values of optional input parameters. The second reset method belongs to the ActionForm class and is called by Struts before setting form fields from the request and then passing the instance to an action (or another presentation element via the action context). The purpose of this method is to set default values to the form fields. It is very important to understand that extending ActionForm and at the same time implementing PresentationElement interface makes the object to play two different roles at different times.

Now, when we have the class, we should create a form bean reference for this form and add 'inputForm' attribute to our search result presentation element descriptor:

...
<formbeanref
  name="peopleSearchForm"
  class="com.boylesoftware.cb2.examples.addressbook.PeopleSearchFormPE"/>

<component name="peopleSearch" src="/peopleSearch.jsp">
  <depends on="peopleSearchForm"/>
  <pelement
    name="peopleSearchResult"
    class="com.boylesoftware.cb2.examples.addressbook.PeopleSearchResultPE"
    inputForm="peopleSearchForm"/>
</component>
...

In the search result presentation element class we can have the following init method implementation (and we do not need any input parameters anymore, of course):

public void init(ActionContext actionCtx)
    throws BLException {

    // get the form
    PeopleSearchFormPE form = (PeopleSearchFormPE)actionCtx.getForm();

    // check if search was requested (the form was submitted)
    if(form.getDoSearch()) {

        // do search
        PersonShortDM [] people = ((AddressBookBLO)actionCtx.getBLO("addressBook")).
            searchPeople(form.getLastNameSubstr(),
                         form.getFirstNameSubstr(),
                         form.getCitySubstr(),
                         form.getState());

        // put the result into searchResult property
        this.searchResult = new ResultElement[people.length];
        for(int i = 0; i < people.length; i++) {
            this.searchResult[i] =
                new ResultElement(people[i].personId,
                                  people[i].lastName + ", " + people[i].firstName);
        }
    }
}

TO BE FINISHED...

Advanced Features

The CB2 contains tons of little features serving many practical tasks. Let's discuss them going from subsystem to subsystem.

Application Context

TO BE WRITTEN...

The DAO

TO BE WRITTEN...

The Presentation Level

TO BE WRITTEN...

Utilities

TO BE WRITTEN...


List of Figures

  1. High-level CB2 framework architecture.
  2. The business level.
  3. Struts-based presentation level.
  4. A page and a pageless action.
  5. Address book database diagram.
  6. User interface pages.
  7. Page layout.


Index

Action Context
Using Presentation Elements
Application Context
Application Context
properties
Configuring Database Connection
application properties
Application Context
BL Manager
Business Level
BLO Container
Business Level | BLO Life-cycle
locking
BLO Life-cycle
blo.config.xml
Business Level
Broadcast Messaging (BCM)
Application Context
Business Level (BL)
Business Level | The Business Level
user session
BLO Life-cycle
Business Level Object (BLO)
Business Level | The Business Level
deployment descriptor
BLO Deployment and Usage
initialization parameters
BLO Initialization Parameters
shared
Business Level | BLO Life-cycle | BLO Deployment and Usage
cb2app.properties
Configuring Database Connection
Components
Presentation Level | Defining Pages and Components
descriptor
Defining Pages and Components
dynamic content
Using Presentation Elements
Data Model (DM)
Business Level | Data Models
descriptor
Data Models
id fields
Updating Data with the
multiple id fields
Updating Data with the
Database Access Object (DAO)
Business Level | The DAO Basics
array query parameters
Fetching Data with the
conditions
Dynamic SQL with Conditions
delete
Deleting Data with the
extended syntax
Using Column Set Macros
fetch
Fetching Data with the | Fetching Data into a
insert
Inserting Data with the
named query parameters
Fetching Data with the
ordering result set
Fetching Data with the
query parameters
Fetching Data with the
result set pagination
Fetching Data with the | Fetching Data into a
update
Updating Data with the | Calling Custom Update Statements
database connectivity
Application Context | Configuring Database Connection
dynamic SQL queries
Dynamic SQL with Conditions
error handling
Error Handling
logging
Application Context
nested DMs
Fetching Data into a
Pages
Presentation Level | Defining Pages and Components
descriptor
Defining Pages and Components
mapping to URLs
Defining Pages and Components
pages-config.xml
Presentation Level | Defining Pages and Components
Presentation Element (PE)
Presentation Level | Using Presentation Elements
global PEs
Global Presentation Elements
input parameters
Input Parameters
Presentation Level (PL)
Presentation Level
shared BLO
Business Level | BLO Life-cycle | BLO Deployment and Usage
template component
Presentation Level
transaction management
Application Context | About Transaction Management
